flex pcb assembly

Flexible PCB Assembly Solution

XPCB Ltd offers a one-stop FPC+Component sourcing+ assembly service to global customers. Our flexible PCB assembly services include SMT and DIP.  If you looking for a quick-turn flexible PCBA service provider, don’t hesitate to call us or email [email protected]

Category: PCB Assembly
Share
  • Description
  • Reviews (0)

One-stop Flexible PCB Assembly

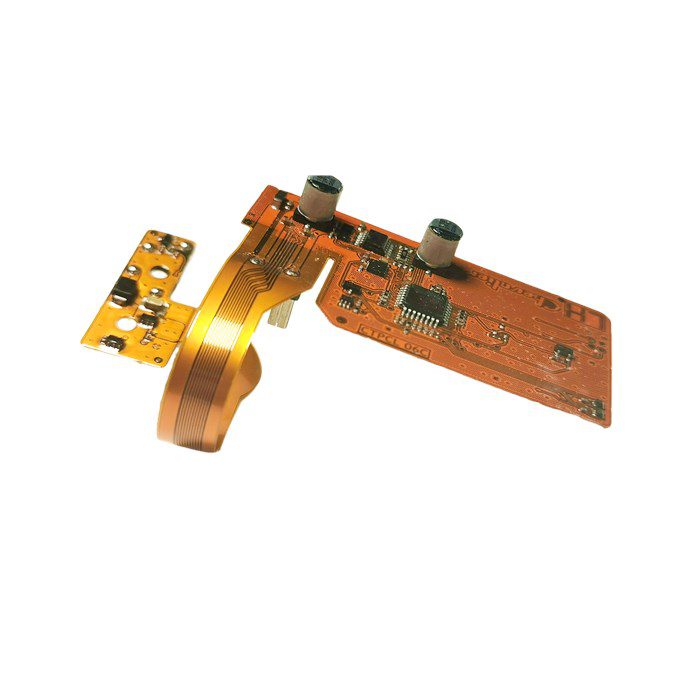

What is flexible PCB assembly? Flexible Printed Circuit Board Assembly refers to a process of soldering components on the surface of PCB. It is delicate work that required advanced equipment and rich hands-on experience.  XPCB Limited offers a quick-turn, low-volume flexible  PCB assembly service with PCB production in-house. A leading provider of Flexible PCB Assembly services for you.

1. Flex PCB Production

2. Component Sourcing

3. SMT Assembly

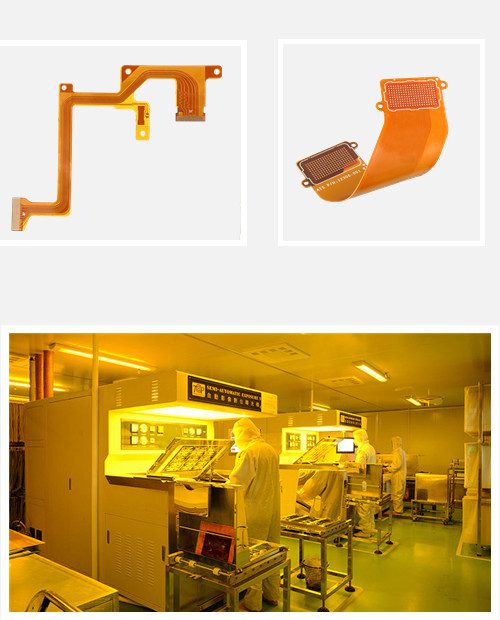

FPC production
元器件 Flexible PCB Assembly Solution
flexible PCB assembly

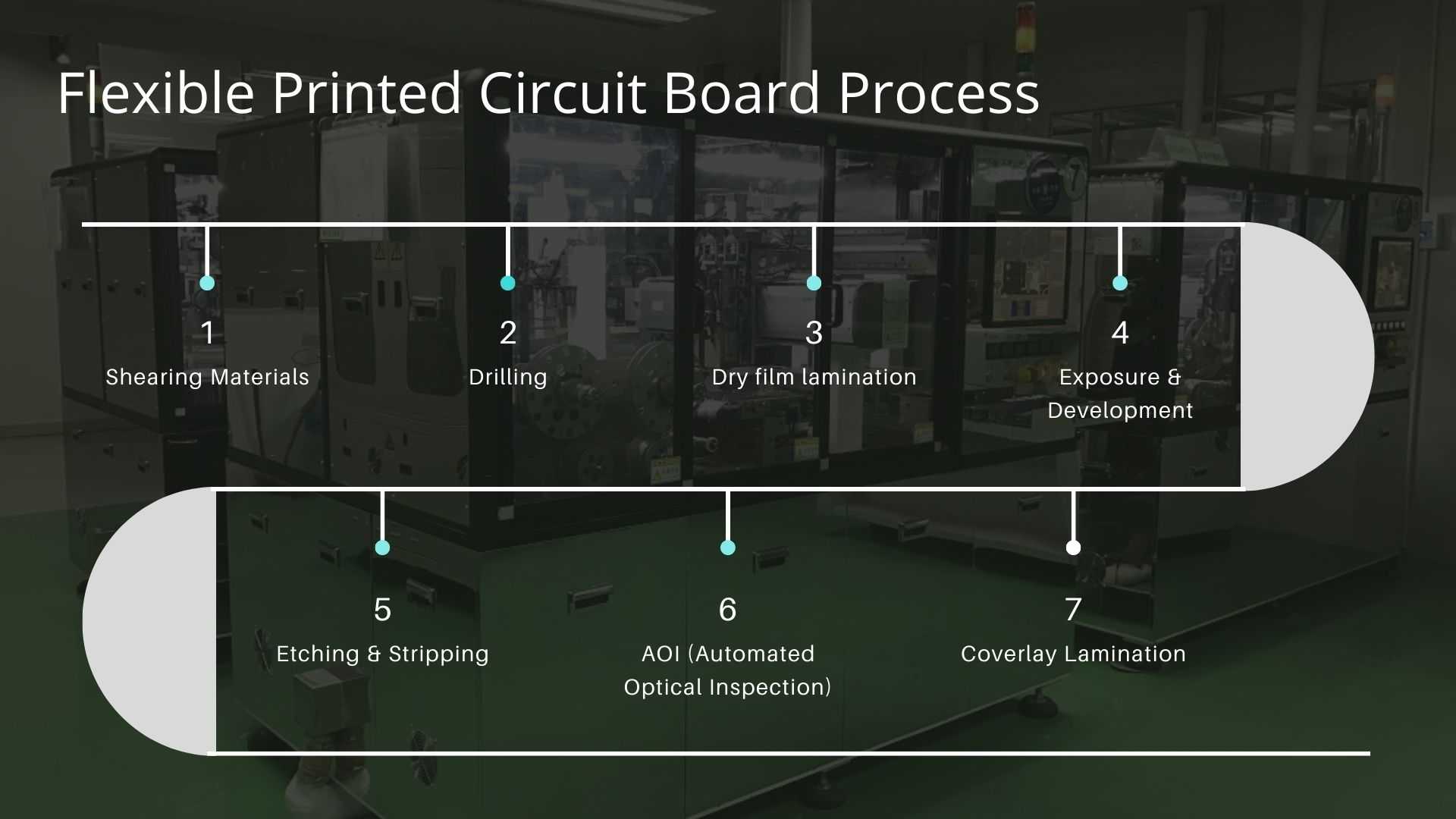

Part 1 Flex PCB Production

Flexible Circuit's - Technical Capability
Item Specification
Layer
1-12
Max Size
20"x40"
Substrate
Polyimide; LCP
Final Thickness
0.12-0.4 mm
Min Trace/Space
2mil/2mil
Via Types
Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad
Copper Weight(finished)
25-140um
Min Laser Via
3mil
Min Mechanical Hole
4mil
Impedance Control
YES
Stifferner Material
FR-4, Polyimide, SUS
Surface Finishes
LF HASL, OSP, ENIG, Immersion tin, Gold fingers
Available Service
Bare Board Production; Consigned Assembly; Turnkey Assembly
FLEX PCB Assembly

Part 2 Component Sourcing & Storage

元器件仓库2 Flexible PCB Assembly Solution

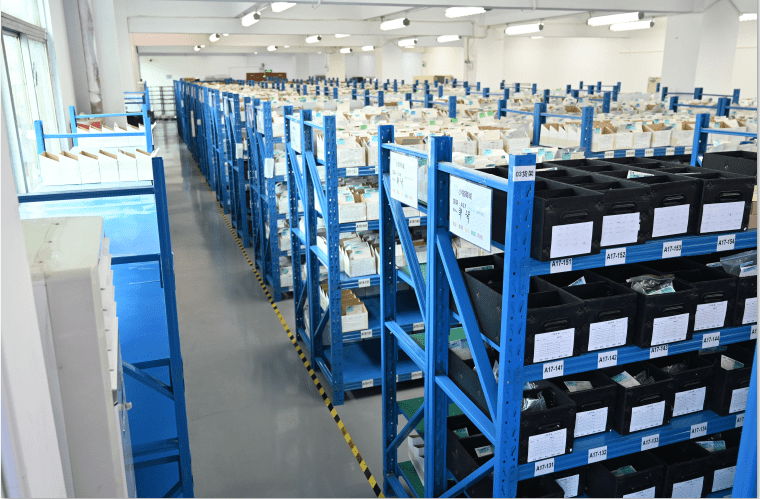

In-house Component Solution

· Permanently ready stock for  YAGEO, MURATA, and AVX brand resistors, and capacitors.

· Formal supplier access and annual audit mechanism

· Strict IQC incoming inspection

· Warehouse management: constant temperature and humidity, anti-static control

· Professional component certification engineer, BOM engineer

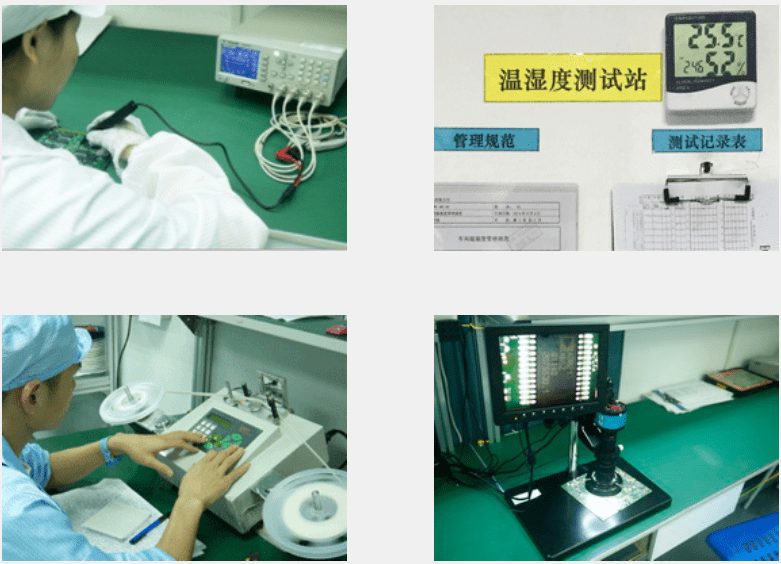

Incoming Parts Inspection

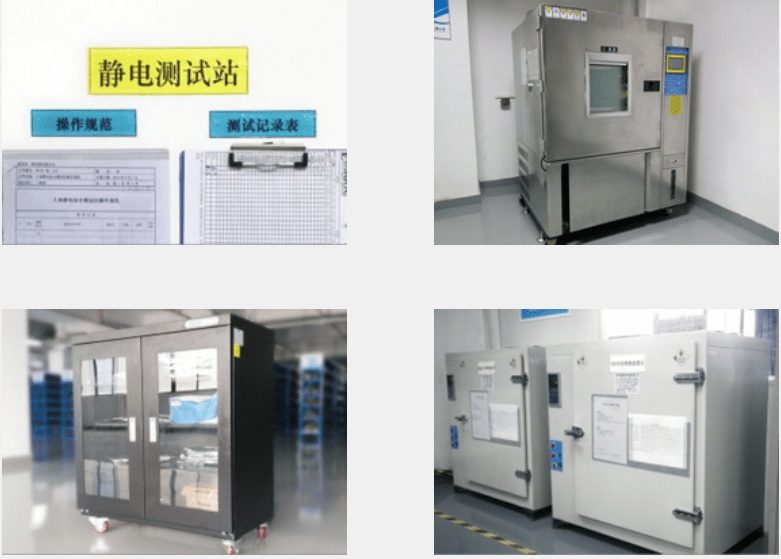

Moisture-sensitive Component Protection

元器件检测 Flexible PCB Assembly Solution
元器件存储 Flexible PCB Assembly Solution

Part 3 Flex PCB Assembly

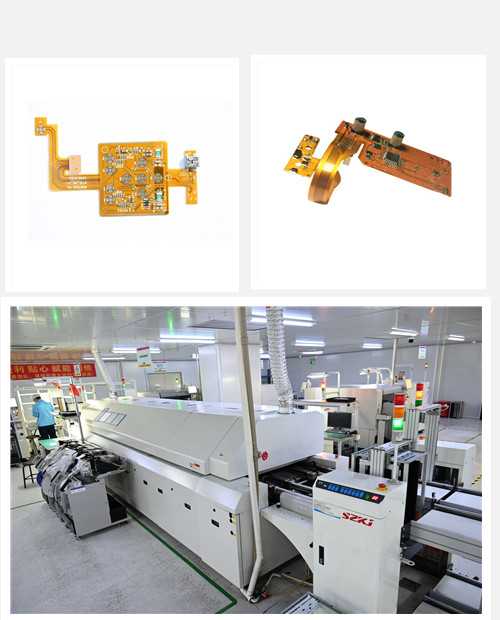

In-house SMT Lines

XPCB  is equipped with 50 fully automatic, high-speed SMT production lines which are made by world-class equipment companies: Yamaha YSM20, and Panasonic NPM-D3.

Monthly capacity: up to 500 million pieces.

Component size: 01005 ~ 0201 size SMD parts,  0.2MM BGA.

Item

Capability

SMT Speed

30.15 millions chips/ Day

SMT Lines

50 automatic lines

Smallest Part Size

01005 Chip/0.35 Pitch BGA

PCB Size

50*50mm - 900*600mm

WHY XPCB?

Flexible Printed Circuit Board Assembly Service

As a leading printed circuit board assembly provider from China. We are offering affordable full-service PCB assemblies from consigned to full turnkey manufacturing, material procurement, assembly, test, system integration, inspection, and advanced technologies. We specialized in camera PCB assembly, automobile PCB production, medical PCB assembly, electronics PCB manufacturing, electronics contract manufacturing, and more.

  • Cable Harness Assembly
  • PCB Assembly Testing
  • Prototype PCB Assembly
  • Turnkey PCB Assembly
  • BGA and µBGA Assembly
  • Lead-Free PCB Assembly
  • SMT PCB Assembly
  • Through Hole PCB Assembly
  • Consignment PCB Assembly
  • PCB Assembly Rework
  • Quick Turn PCB Assembly
  • Low Volume PCB Assembly
  • High Volume PCB Assembly
  • PCB Conformal Coating
  • IC Programming

High Volume PCB Assembly
Industrial PCB Assembly
Telecommunication PCB Assembly
Mainboard PCB Assembly
Automotive PCB Assembly
BGA and µBGA Assembly
Medical PCB Assembly
Instrument PCB Assembly
Robotics PCB Assembly
GPS System PCB Assembly
Lead-Free PCB Assembly
Smart Home PCB Assembly
Drone PCB Assembly
Medical PCB Assembly
Renewable Energy PCB Assembly

Reviews

There are no reviews yet.

Be the first to review “Flexible PCB Assembly Solution”

You must be logged in to post a review.

PRODUCT ENQUIRE

    RELATED PRODUCTS

    • component sourcing profile Component Sourcing

      Component Sourcing

    • quick-turn pcb assembly

      Quick-turn PCB Assembly

    • Quick-turn PCBA service

      Consigned PCB Assembly

    • Low-volume PCBA

      Low-volume PCB Assembly

    • PCBA service

      Turnkey PCB Assembly
