12 layer high quality HDI rigid flex PCB with 2 tier

12L HDI Rigid-flex PCB

Looking for Quick Turn Rigid Flex PCB and Flex Circuits, Contact XPCB Ltd. We have been dedicating ourselves to advanced technology related to Rigid Flex Circuit Boards. Also, Get your industrial imaging sensor rigid flex PCB at XPCB.

Categories: Industrial Control PCB, PCB Fabrication, Rigid Flex PCB Tags: rigid flex pcb, rigid flex pcb stackup, rigid flex pwb
Share
  • Description

Leading Rigid-flex PCB Manufacturer

Product Description

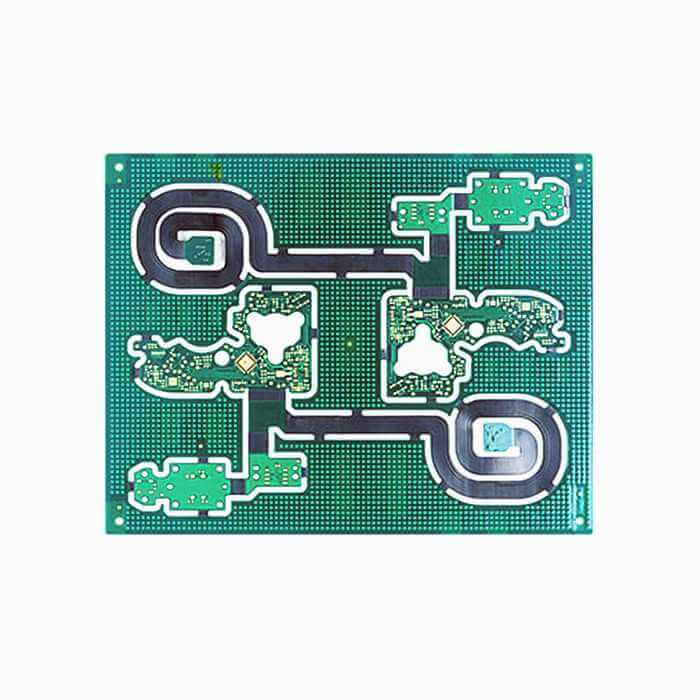

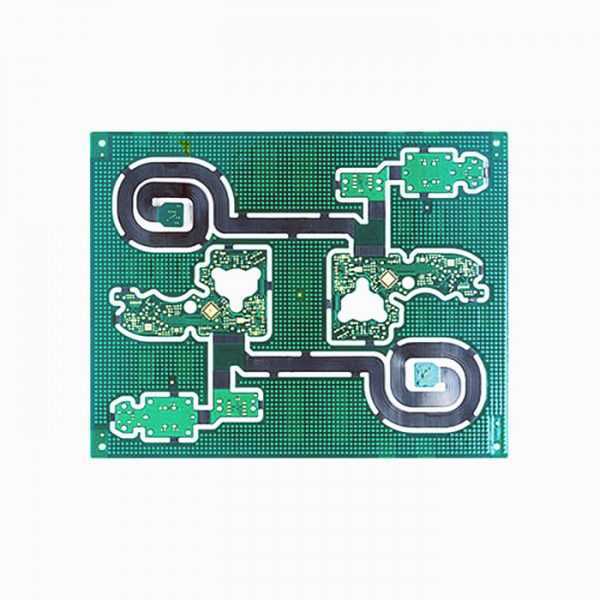

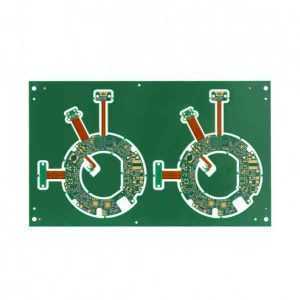

This is a 12 layer HDI Rigid Flex PCB built for High-end Digital Camera.

Featuring 3R+6F+3R stack up, this flex-rigid PCB is designed to meet high circuit density demand.While its fabrication is harder than it sounds. We drilled both vias by CO2 laser which is more accurate than mechanical drilling.



Other properties of this 12 layer rigid flex circuit:  ENIG finish treatment, 0.075/0.075mm Min. trace/ space, V0 Flame Retardant.

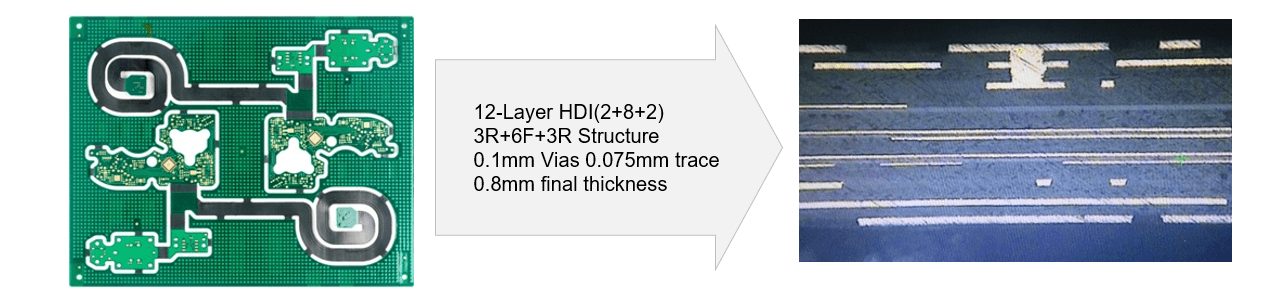

rigid flex pcb stackup info

Specifications

Type HDI Rigid Flex PCB
Layer
12L
Structure
3R+6F+3R
Thickness
0.8mm
Min Trace/Space
3mil /3 mil
Finish
ENIG
Min hole size
0.1mm
12 layer high quality HDI rigid flex PCB with 2 tier

Rigid-Flex PCB Capability

  • Material

    Rigid: FR-4
    Flex : Polyimide

  • Thickness

    0.2mm-7mm

  • Finish

    ENIG, Imm Tin, Imm Ag, OSP, Gold Finger

  • Inner Copper

    1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz

  • Tolerance

    Impedance Tolerance: ±10%. | Thickness Tolerance: ±10%.

  • Board Size

    2- 4 Layers: 500 x 1000mm
    >=5 Layers: 500 x 800mm

  • Layer

    1-26 Layer customizable

  • Min Trace/Space

    3/3mil

  • Min Hole Ring

    Inner (5mil -12mil) / Outer (4mil-10 mil)

  • Min Hole

    6 mil

Frequently Asked Questions

Q: What is the maximum layer you can fabricate?
For rigid-flex PCB, we can build up to 26 layer.
For flex circuit, we can make up to 12 layers.
Q:Can you do ENIG finish?

Yes, we can do ENIG, Imm Tin, Imm Ag, OSP, Gold Finger as you need.

Q: What is your max working board size?

We have varied standard for different layers.

For 2- 4 Layers: 500 x 1000mm

For>=5 layers: 500 x 800mm

Q: What is your fastest lead time?

Regular 2-4 layers Rigid PCB 48 hours, Regular 4-6 layers Rigid-Flex PCB 5 days.

Q: Can you do 0.4mm thickness?

Yes,  our thinnest  board is 0.2mm.

They look good, take me to quote

PCB Equipments

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Quality Report

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report
COC 12L HDI Rigid-flex PCB
Outgoing report from XPCB 12L HDI Rigid-flex PCB
board thickness report 12L HDI Rigid-flex PCB
MICROSECTION REPORT 12L HDI Rigid-flex PCB
solderability test report 12L HDI Rigid-flex PCB
e test report 12L HDI Rigid-flex PCB

Why Choose Us

XPCB Ltd is always trusted as a reliable supplier by many customers when it comes to purchasing rigid flex circuit boards. We have been dedicating ourselves to advanced technology related to rigid flex printed circuit boards to make sure all sorts of rigid flex PCB manufacturing requirements are met.

Having a brilliant team specialized in rigid flex circuit helps us quickly understand your entire design without asking you explain again over again. This would save you plenty of time and speed up the whole pre-order process considering it is a cross-timezone conversation. Being our client, you can always expect professional DFM support at early stage, smooth communication in the middle stage and on-time delivery after place order.

Quick turn rigid flex PCB is our most praised service, from single-layer rigid flex circuit, double-sided rigid-flex circuit to multilayer rigid-flex board with blind or buried vias. We can build up to 26 layers rigid flex PCB board with quality and lead time guarantee.

Tasked with building quick-turn prototype to validate your new concept? We provide expedited service that can both satisfy short delivery time & guaranteed quality. Entrusting your rigid flex PCB project with us, you can expect to receive your “first-build” prototypes fast at affordable cost.

If you are checking rigid flex PCB cost around, contact us now at [email protected]. You will be hearing from one of the most exceptional rigid-flex PCB manufacturers in China.
