6 layer HDI Rigid Flex PCB made of FR4 and PI

6 Layer HDI Rigid Flex PCB Stackup

This HDI rigid flex PCB stackup features Blind & Buried Holes, very thin 0.6mm rigid area thickness. It is an easy-to-make design, but with the help of advanced equipment and decades of manufacturing experience, we make this PCB successfully at one time and zero defect rate.

Categories: PCB Fabrication, Rigid Flex PCB Tag: rigid flex pcb
Share
  • Description

6 Layer HDI RIGID-FLEX PCB W/ Blind Buried Vias

Product Description

 5/5

This is a 6 layer HDI rigid flex PCB with blind & buried vias. Built up with most common rigid insulation material-FR4 and Dupont Polyimide, it has nice bending performance. Also its 0.6mm thick rigid area lends this board with good strength. All laminate material are from an authorized distributor under XPCB’s check.



By applying ENIG finish, this rigid flex circuit gets benefits like excellent surface planarity, good oxidation resistance, and suitability for movable contacts.

Layer 6L
Type
Rigid-Flex PCB
Material
Dupont PI & FR-4
Finish
ENIG
Features
Blind & buried vias
Send Rigid-flex PCB RFQ
Send Flexible PCB RFQ



With HDI technology, its design flexibility, reliability, and routing efficiencies are noticeably improved.  We drilled the blind & buried vias with CO2 to assure accuracy as via size is only 3mil. Not many chinese manufacturers can make HDI rigid flex PCB with high yield like XPCB, below is the stack-up we make for this 6 layer HDI rigid flex PCB.

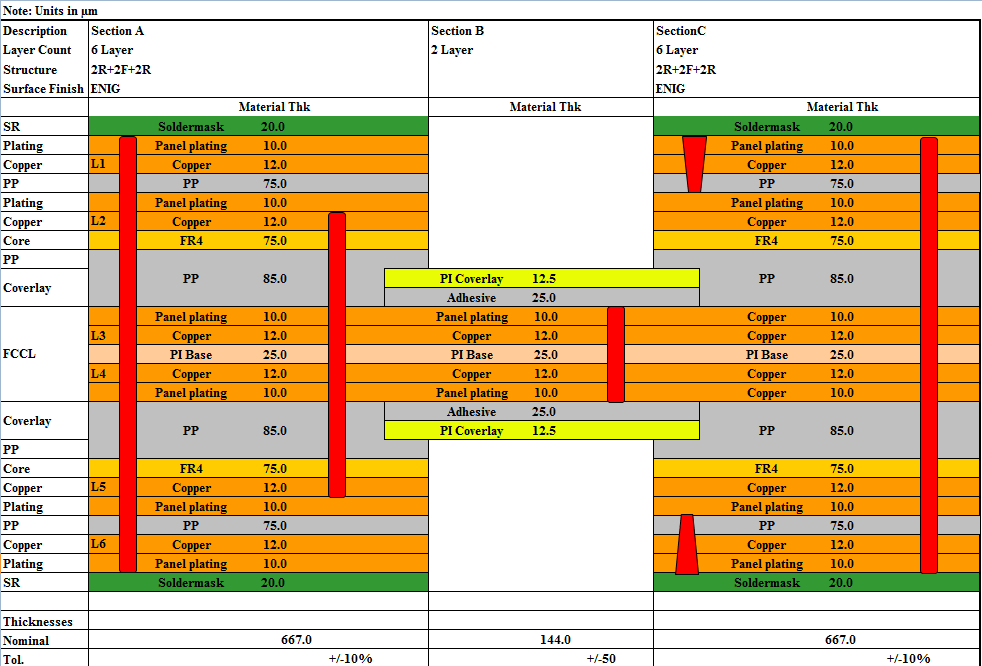

HDI Rigid-Flex PCB Stack-up

6 layer hdi rigid flex pcb stackup

Check Our Equipment

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

professional quality inspection reports

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report

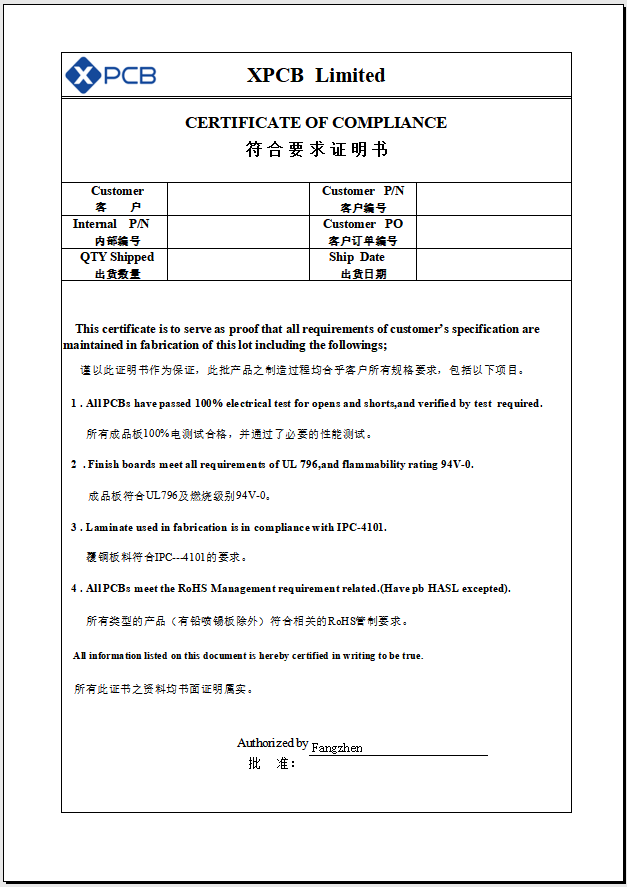

COC 6 Layer HDI Rigid Flex PCB Stackup

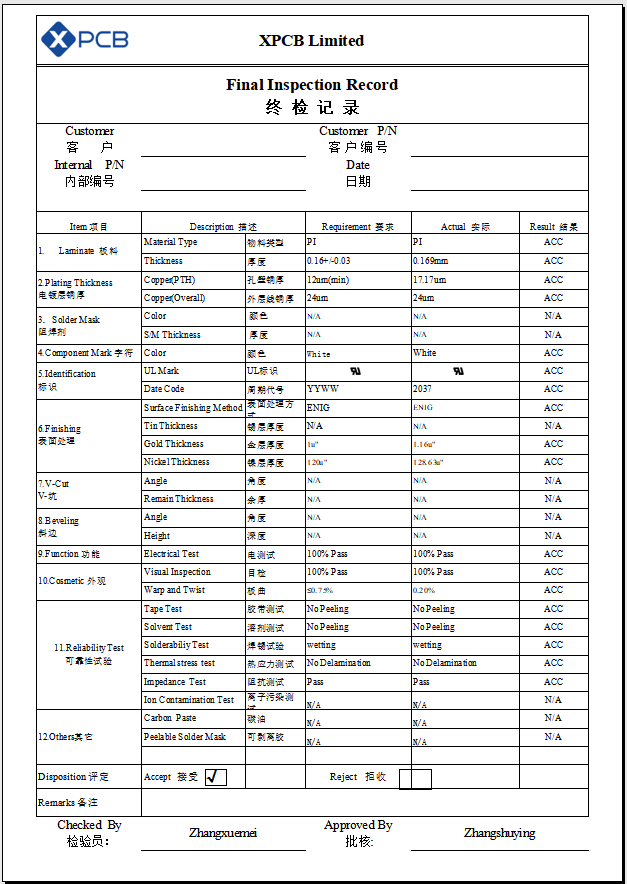

Outgoing report from XPCB 6 Layer HDI Rigid Flex PCB Stackup

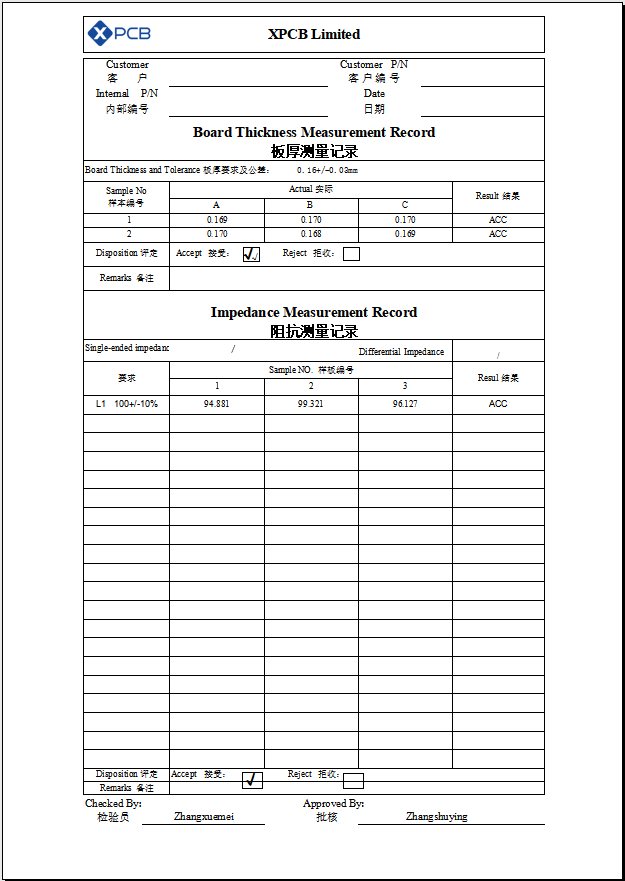

board thickness report 6 Layer HDI Rigid Flex PCB Stackup

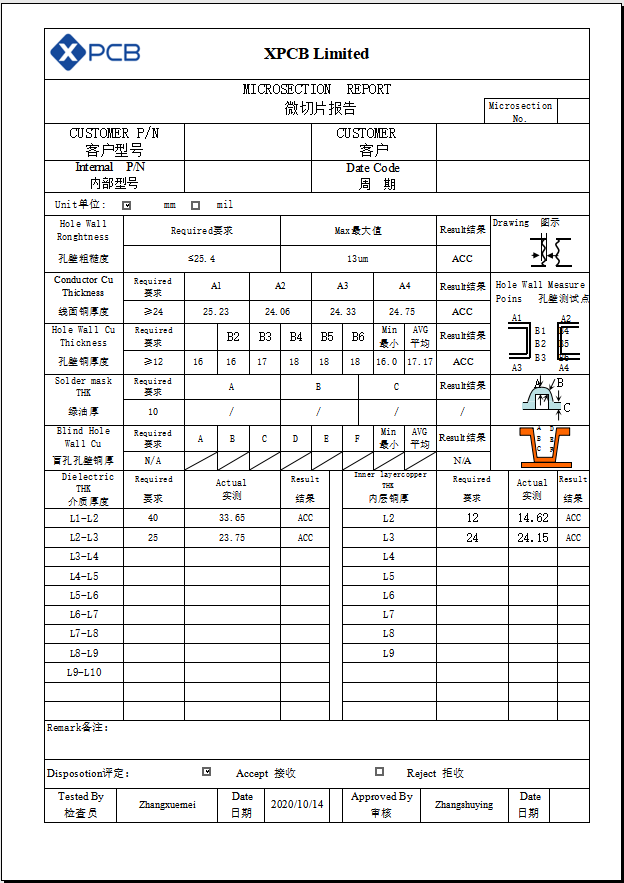

MICROSECTION REPORT 6 Layer HDI Rigid Flex PCB Stackup

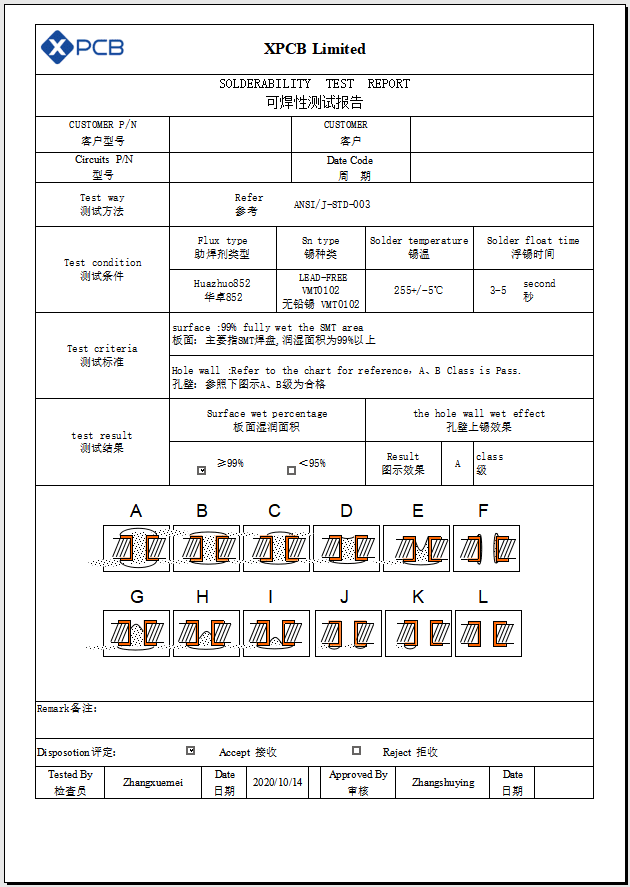

solderability test report 6 Layer HDI Rigid Flex PCB Stackup

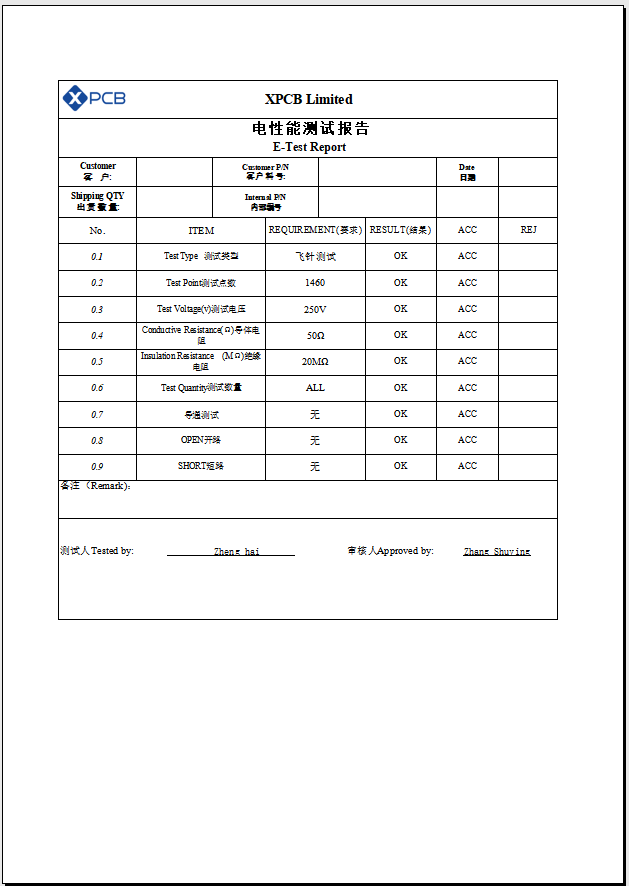

e test report 6 Layer HDI Rigid Flex PCB Stackup

Why Choose Us

XPCB Ltd is always trusted as a reliable supplier by many customers when it comes to purchasing rigid flex circuit boards. We have been dedicating ourselves to advanced technology related to rigid flex printed circuit boards to make sure all sorts of rigid flex PCB manufacturing requirements are met.

Having a brilliant team specialized in rigid flex circuit helps us quickly understand your entire design without asking you explain again over again. This would save you plenty of time and speed up the whole pre-order process considering it is a cross-timezone conversation. Being our client, you can always expect professional DFM support at early stage, smooth communication in the middle stage and on-time delivery after place order.

Quick turn rigid flex PCB is our most praised service, from single-layer rigid flex circuit, double-sided rigid-flex circuit to multilayer rigid-flex board with blind or buried vias. We can build up to 26 layers rigid flex PCB board with quality and lead time guarantee.

Tasked with building quick-turn prototype to validate your new concept? We provide expedited service that can both satisfy short delivery time & guaranteed quality. Entrusting your rigid flex PCB project with us, you can expect to receive your “first-build” prototypes fast at affordable cost.

If you are checking rigid flex PCB cost around, contact us now at [email protected]. You will be hearing from one of the most exceptional rigid-flex PCB manufacturers in China.

  • Material

    Rigid: FR-4
    Flex : Polyimide

  • Thickness

    0.2mm-7mm

  • Finish

    ENIG, Imm Tin, Imm Ag, OSP, Gold Finger

  • Inner Copper

    1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz

  • Tolerance

    Impedance Tolerance: ±10%. | Thickness Tolerance: ±10%.

  • Board Size

    2- 4 Layers: 500 x 1000mm
    >=5 Layers: 500 x 800mm

  • Layer

    1-26 Layer customizable

  • Min Trace/Space

    3/3mil

  • Min Hole Ring

    Inner (5mil -12mil) / Outer (4mil-10 mil)

  • Min Hole

    6 mil

Keywords: #HDI rigid-flex PCB, #HDI PCB, #Rigid-flex PCB with HDI, #6 layer HDI PCB, #HDI PCB supplier, #HDI rigid-flex PCB cost, #HDI rigid-flex PCB quote, #HDI rigid-flex PCB fabrication, #HDI rigid-flex PCB prototype, #HDI rigid-flex PCB manufacturer, #HDI rigid-flex PCB supplier, #HDI rigid-flex PCB sample, #HDI Rigid-flex stackup

PRODUCT ENQUIRE

    RELATED PRODUCTS

    • long flex PCB

      1100mm Long Flex PCB

    • rigid-flex pcb quote

      6L Rigid-Flex PCB Quote from x-pcb.com

    • Video surveillance system pcb

      Video Surveillance System PCB

    • Monitoring instrument PCB

      Monitoring instrument PCB

    • Stage lighting control pcb

      Stage Lighting Control PCB

    • Base station sub board Base station sub board

      Base station sub board

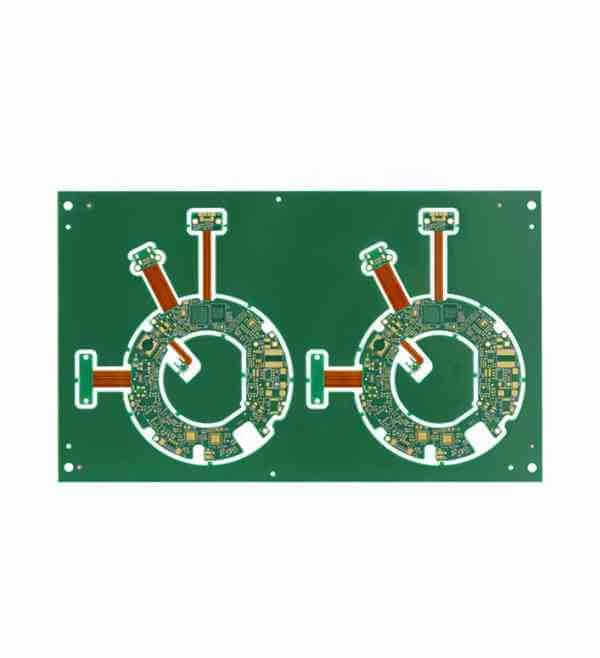

    • 700 rigid flex pcb 8 Rigid Flex PCB Overview
