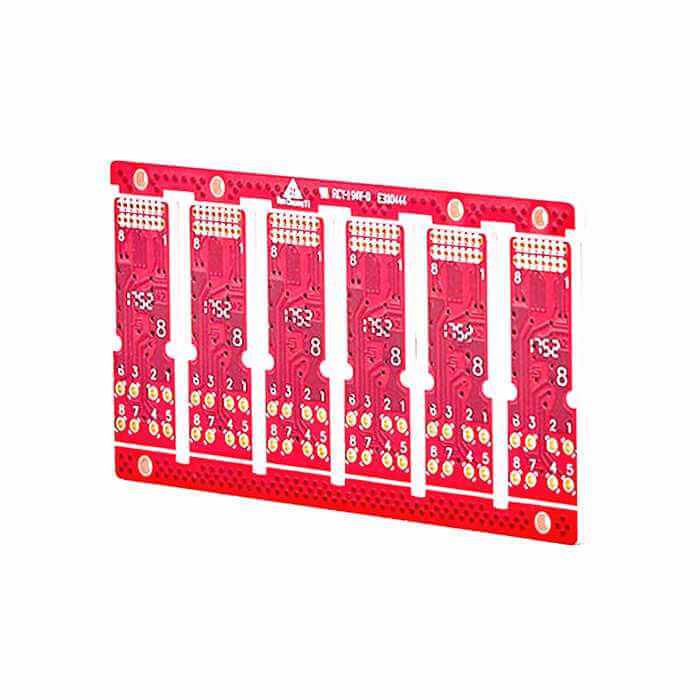

2 LAYERS HIGH FREQUENCY PCB WITH ROGERS MATERIAL

RF PCB Overview

Categories: PCB Fabrication, RF PCB
Share
  • Description



What Is RF PCB?

In general terms, the PCB industry considers an RF circuit board to be any high frequency PCB that operates above 100MHz. RF PCBs are one of the fastest growing sectors in PCB manufacturing. With with proliferation of IoT sensors, wireless electronics, and smartphones.



What Advantages RF PCB Has?

  1. RF circuit board and microwave PCB board can work on high Frequencies.
  2. They have a stable structure. Hence, it allows them to work at high temperatures.
  3. These have a stable dielectric constant and a low loss tangent. So, the signal travels through them with minimum impedance.
  4. It is possible to form a multilayer board stack up. Hence, we can make smaller boards. Therefore, they give optimal performance and are cost-effective.
  5. They allow for fabricating complex layouts. So, it is easier to assemble fine pitch components onto the board.



CUSTOM QUOTE REQUIREMENTS

To ensure an accurate quote, be sure to include the following information for your project:

  • File set
    • Complete GERBER files including the Excellon Drill File (preferred)
    • .DXF or .DWG file (acceptable)
    • .PDF drawings (acceptable for quoting, but electronic file type above or existing films required for manufacturing).
  • “Read Me” or print notes for additional fabrication information
  • Quantities required
  • Turn time desired
  • Panelization Requirements
  • Materials Requirements (material type, thickness as well as copper requirements)
  • Finish requirements (type and thickness)

RF PCB QUOTE RF PCB Overview



PRODUCT ENQUIRE
