flex pcb manufacturing

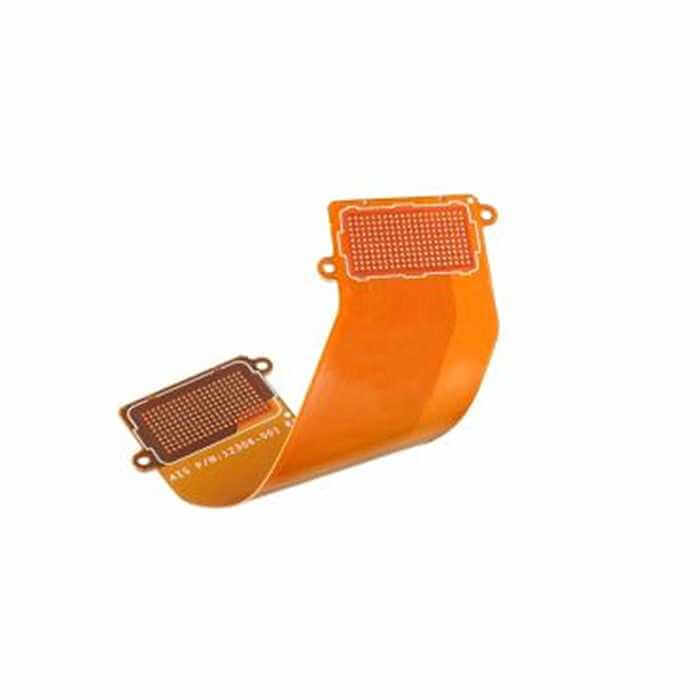

10 Layer Flexible PCB –

A 10 Layers Flexible PCB made by XPCB, built for a top-class flex PCB connector. We are one of the best flex PCB manufacturers in China, offering turnkey flex PCB assembly service.

Categories: Flexible PCB, Industrial Control PCB Tags: flex circuit, flex pcb, flex pcb manufacturer, flexible pcb, flexible printed circuit board, fpc
Share
  • Description

Quick-turn Multi-Layer Flex PCB Manufacturer

A flexible printed circuit board (FPCB), commonly known as flexible PCB or flex circuit, is a type of electronic circuit board characterized by its flexibility. It is designed to be more versatile and adaptable than traditional rigid PCBs. Flexible PCBs are made of flexible plastic materials, such as polyimide or polyester, which allows them to bend, twist, or conform to the shape of the device or product they are integrated into. Flexible PCBs find applications in various industries, including consumer electronics, medical devices, automotive systems, and aerospace, where their unique characteristics can offer advantages in terms of form factor, weight, and reliability.

Flexible pcb manufacturer

Welcome to XPCB LIIMITED, Your Trusted Flex PCB Manufacturer.

Searching for top-tier flex PCB assembly companies? Look no further! At XPCB LIIMITED, we specialize in providing one-stop flex PCB manufacturing solutions for all your flexible PCB needs.

10L Flex PCB Product

Item Detail
Layer
10L
Thickness
0.6mm
Min Trace/Space
4mil/4mil
Dielectric
Polymide
Stiffener:
Stainless Steel
Highlight:
strict impedance control for high speed signal transfer
flex pcb manufacturing

Flex PCB Manufacturing Capability

Flexible Circuit's - Technical Capability
Item Specification
Layer
1-12
Max Size
20″x40″ inch
Substrate
Polyimide; LCP;
Final Thickness
0.12-0.4 mm
Min Trace/Space
2mil/2mil
Via Types
Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad
Copper Weight(finished)
25-140um
Min Laser Via
3mil
Min Mechanical Hole
4mil
Impedance Control
±5% or 10%
Stifferner Material
FR-4, Polyimide, SUS
Surface Finishes
LF HASL, OSP, ENIG, Immersion tin, Gold fingers
Available Service
Bare Board Production; Consigned Assembly; Turnkey Assembly
flex pcb quote

Ready Flexible PCB Laminates

Being a top flex PCB manufacturer, we offer a wide range of laminate models tailored to meet your specific needs.

Stock Material for
flexible PCB
Dielectric Thickness Copper Thickness
Measure
mil
µm (oz/ft2)

PDF download button Panasonic R-F775

Adhesiveless Flexible Laminates

1mil/2mil/3mil/4mil
1/3oz, 1/2oz, 1oz, 2oz

PDF download button  Panasonic R-F777

2mil/3mil/4mil/5mil
1/3oz, 1/2oz, 1oz, 2oz

PDF download button Dupont AP 8545R/8535R/8525R

all polyimide laminate

4.0 / 3.0/ 2.0
18 (0.5)

PDF download button Dupont AP 9131R/9141R

all polyimide laminate

3.0/ 4.0
35 (1.0)
PDF download button Panasonic LCP R-F705S Dk 2.9 Df 0.002 @14GHz
1/2/3/4/5
1/2oz, 1/3oz, 1/4oz
PDF download button ShengYi SF202 FCCL
Double-sided Adhesiveless
0.5/0.8/1/2 mil
0.1/0.2/0.3/0.5/0.7/1.4/2.8 oz
PDF download button Low Loss MPI FCCL SF230
1/2 mil
1/3 oz,1/2 oz
rigid flex pcb manufacturer

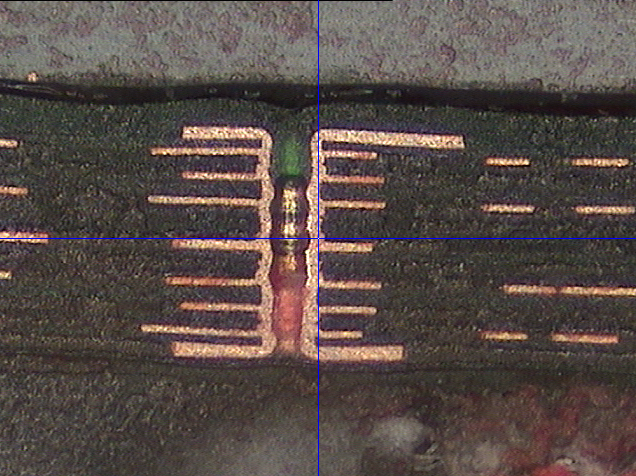

flexible pcb microsection

Why Choose Us?

  • Expertise: We are among the best flex PCB manufacturers in the industry, offering unmatched expertise in flex PCB fabrication and assembly.
  • Quick Turnaround: Our commitment to fast turnarounds sets us apart. Experience swift and reliable services for your flex PCB projects.
  • Global Reach: With a strong presence in the USA, we cater to your PCB prototype needs with a focus on quality, speed, and precision.
  • Custom Solutions: Tailored to your requirements, we provide custom PCB manufacturing and assembly services, ensuring your unique needs are met.
  • Innovation: Stay ahead with our innovative solutions. Our flexible PCBs and advanced technologies redefine what’s possible in the world of electronics.

Frequently Asked Questions

● Q: What is your certificate?

A: ISO9001: 2015, ISO14001: 2015, UL, IATF16949.

● Q: Do you provide component mounting service?

A: Yes, being a turnkey Flex PCB manufacturer, we provide parts ordering, assembly service at quick turnaround or standard lead time.

● Q: How about your lead time? Can you do Quick-turn?

A: Yes. We excel in quick-turn flex PCB prototyping. For single-layer and double-sided Flex PCB, our fastest lead time is 48 hours. For  4- 6 layers above, we can produce within 5 working days. You can count on us as your premium quick-turn flex PCB manufacturer.

● Q: Can you provide stack-up suggestions and guidelines in the early design stage?

A: Absolutely! We take pride in offering stack-up and guidelines for your flexible PCB design,especially for multi-layer HDI flex PCB design, drawing upon decades of manufacturing experience to enhance the success of your project.

Request Your PCB Stack-up

FPC Laminate Cutting Machine

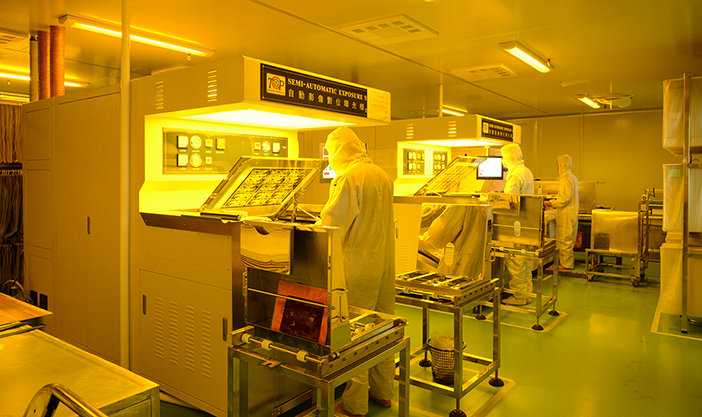

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

About us

We Focus on PCB Manufacturing & assembly.

XPCB Ltd is a high quality flexible pcb manufacturer & assembler in China. With more than 15 years’ experience as a flex PCB manufacturer, we are known for our expertise in flex PCB manufacturing & assembly, including flexible PCB prototype, low volume, medium volume and high volume flexible PCB.  Meanwhile we also provide one-stop flex board assembly service for customers who need affordable and quick turnaround PCBA service.Request a flex PCB quote and experience the efficiency and innovation that set us apart from flexible PCB prototype companies.

XPCB Ltd manufactures a variety of flexible printed circuit boards, from single layer flex PCB, double-sided flex PCB to multilayer flex circuits, up to 12 layers for Automotive, bluetooth earbuds, handheld PDAs and intricate medical electronics.

Using our decade of flex PCB manufacturing experience, you can avoid multiple manufacturability & compatibility issues before putting into production,and enjoy fast delivery within shortest time possible.

Get started on your next project with XPCB LIMITED. Request a quote today and let us be your trusted partner in PCB manufacturing and assembly.

[Contact Us Now] for all your PCB needs. Join our satisfied clients who trust us for excellence in PCB fabrication, assembly, and innovation.

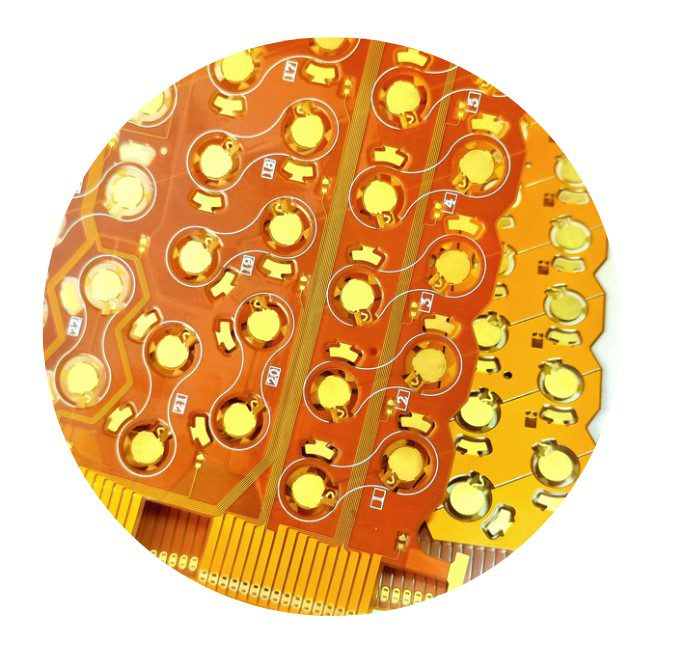

flex pcb for EV BMS
flexible circuits 10 Layer Flexible PCB -

Our Flex PCB Expertise

  1. Flex PCB: Revolutionize your designs with our high-quality flex PCBs. We excel in multi-layer flex PCB  as an outstanding flex PCB manufacturer.
  2. Quick Turn Flex Circuits: Need speedy solutions? Our quick-turn flex circuits guarantee fast results without compromising quality.
  3. Rigid-Flex Circuit Boards: Explore the possibilities of rigid-flex circuit boards with us. Start your design with manufacturing insights.
  4. Flex PCB Assembly: Entrust your assembly needs to us. Our skilled team ensures seamless integration and flawless execution in every flex PCB assembly project.
  5. Flex PCB Prototyping: Turn your ideas into reality with our flex PCB prototyping services. From concept to prototype, we accelerate your product development.

    You May Also Interested In:

  • 12 Layer Rigid Flex PCB
  • 6 Layer Flex PCB with HDI
  • Our Facility

PRODUCT ENQUIRE

    RELATED PRODUCTS

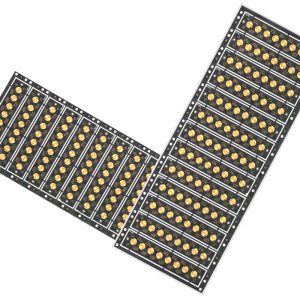

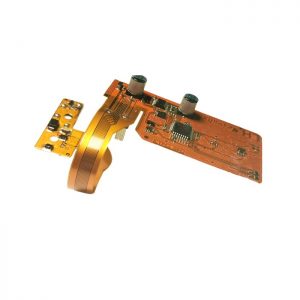

    • flex PCB manufacturer-2

      ElectroPlated Gold Flex PCB

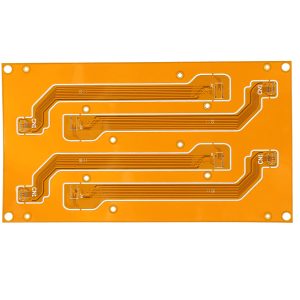

    • Flex PCB Prototype

      4 Layer Flex PCB Prototype

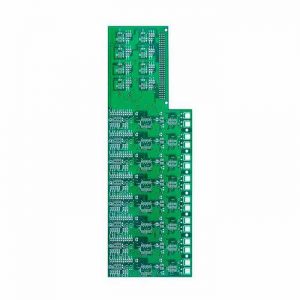

    • Stage lighting control pcb

      Stage Lighting Control PCB

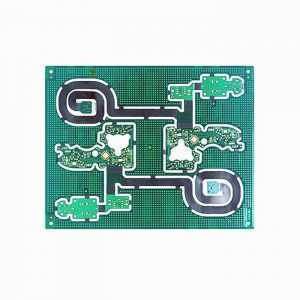

    • Flexible PCB Prototyping

      6 Layer HDI Flex PCB-

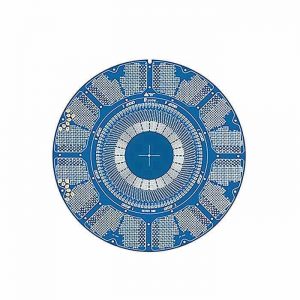

    • 26 LAYERS IMMERSION GOLD BOARD

      IC testing instrument Rigid PCB

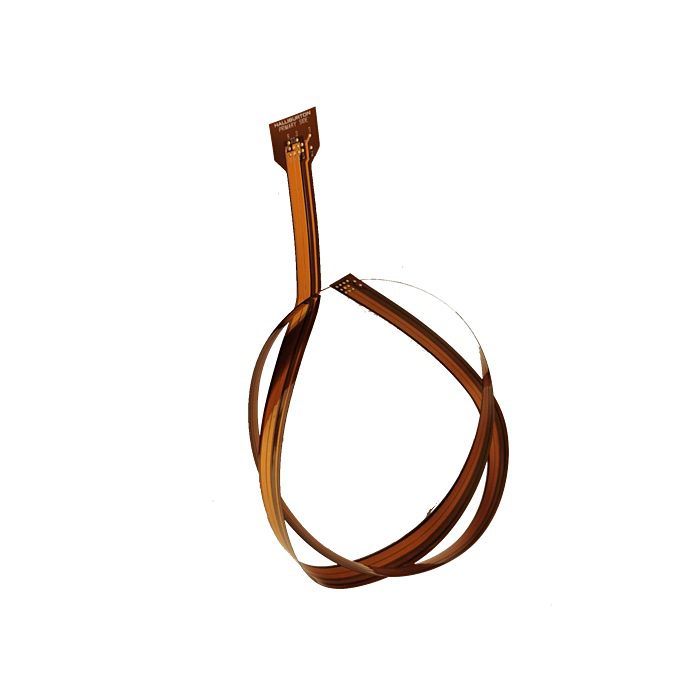

    • long flex PCB
