1100mm long flex pcb manufacturer

1100mm Long Flex PCB

This is an 1100mm length flex PCB made of polyimide material with ENIG. x-pcb.com is a long flexible circuit and Polyimide Flex PCB manufacturer in china on your demand for flexible printed circuit boards.

Categories: Flexible PCB, PCB Fabrication
Share
  • Description
  • Reviews (0)

Long Flex PCB Expert | Polyimide PCB Manufacturer

polyimide PCB 2 1100mm Long Flex PCB

polyimide pcb

Product Description

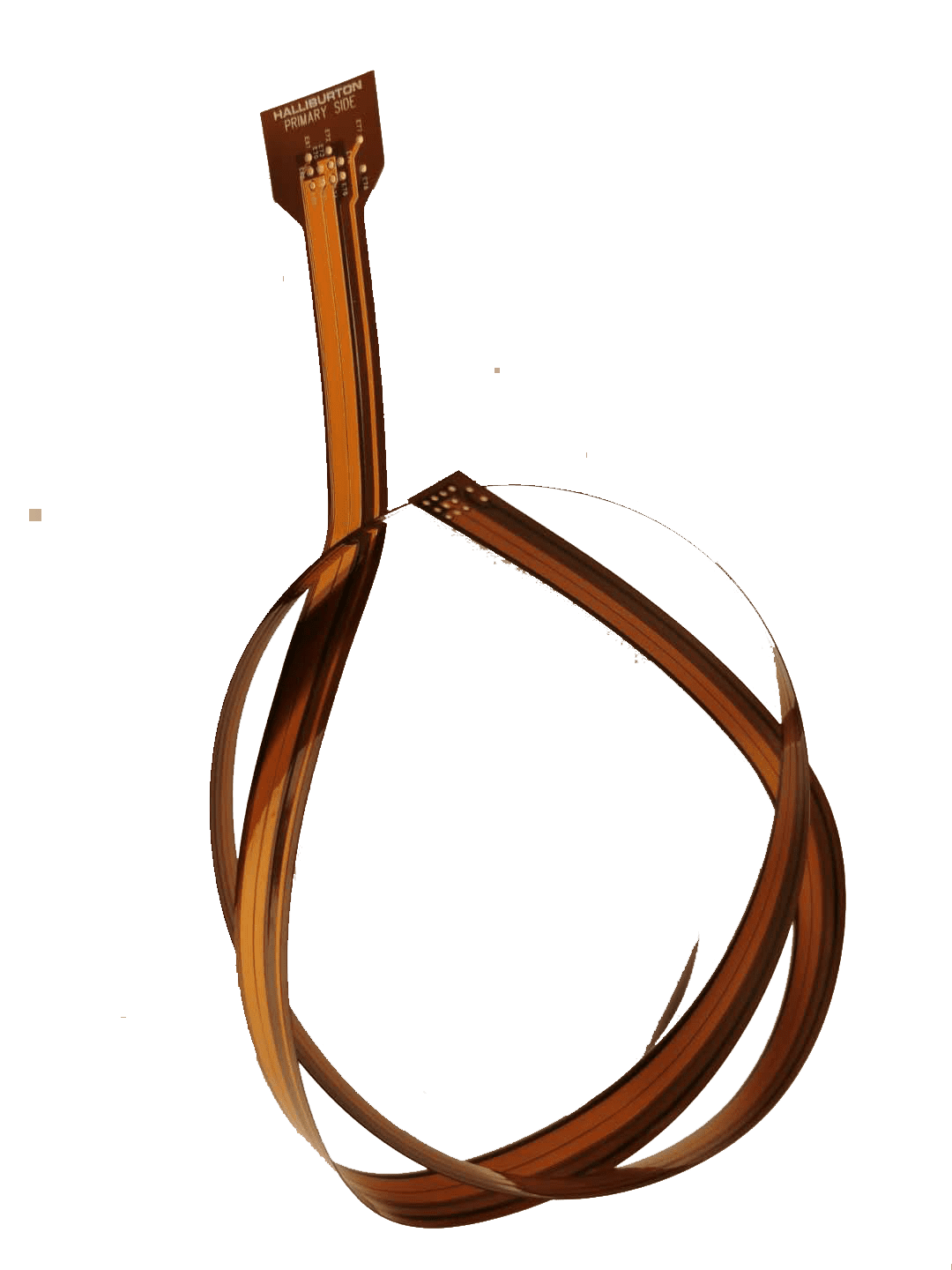

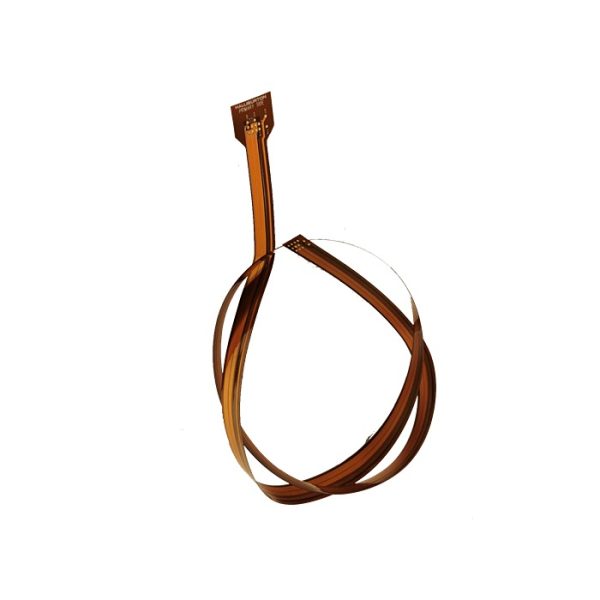

Long flex PCB is not an easy job, especially when it is 7 days quick-turn.  Here introduce a 1100mm long polyimide flex PCB we have built.

It is made of DuPont™ Polyimide with ENIG finish. Built for high 220°C working temparature, it has superior heat-resistance performance as polyimide flexible PCB.

To catch the date, we use 7 days to build it and ship out with fastest DHL service. Other requirements about this PCB are 0.28mm thickness, 5/5mil Min tarce/space.

XPCB Ltd is expert in flexible PCB fabrication, especially long flex PCB like this one. Welcome reach out for quote if you have similar design.

Specifications Chart

Layer 3L
Length
1100mm
Thickness
0.28mm
Min Trace/Space
5/5mil
Finish
ENIG
Working Temp.
220°C Oil Production

Our Equipments

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Get Instant Quote Now

Our Flexible Circuit Capability

Flexible Circuit's - Technical Capability
Item Specification
Layer
1-12
Max Size
20"x40"
Substrate
Polyimide; LCP
Final Thickness
0.12-0.4 mm
Min Trace/Space
2mil/2mil
Via Types
Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad
Copper Weight(finished)
25-140um
Min Laser Via
3mil
Min Mechanical Hole
4mil
Impedance Control
YES
Stifferner Material
FR-4, Polyimide, SUS
Surface Finishes
LF HASL, OSP, ENIG, Immersion tin, Gold fingers
Available Service
Bare Board Production; Consigned Assembly; Turnkey Assembly

Frequently Asked Questions

● Q: What is longest flex PCB you can make?

A: We can make up to 2.5 meters flex PCB.



● Q: Are you able to make flexible PCB with both end having connectors easily?

A:  Yes, this is one of the typical flexible circuit types we produced a lot.



● Q: How about your lead time? Can you do Quick-turn?

A: Yes, for single-layer and double-sided Flex PCB, our fastest lead time is 48 hours. For  4- 6 layers above, we can produce within 5 working days.


● Q: Can you perform good connector assembly?

A: Yes, we deliver over 500+  turnkey flex PCB  assembly works so far, so you can count on us for high reliability assembly for your flex PCB.

● Q: Can you provide stack-up suggestions in the early design stage?

A: Yes, we love to give suggestions for your flexible PCB design with our decades of manufacturing experience For Free.

Why Choose Us?

We offer flex PCB fabrication

XPCB Ltd is a high quality long flexible PCB manufacturer & assembler in China. With more than 15 years of experience as a PCB supplier, we are known for our expertise in all kinds of polyimide flex PCB manufacturing & assembly, including flex PCB prototype, low volume, medium volume, and high volume flexible PCB.  Meanwhile, we also provide one-stop flex board assembly service for customers who need affordable and quick turnaround PCBA service.

XPCB Ltd manufactures a variety of flexible printed circuit boards, from single-layer flex PCB, double-sided flex PCB to multilayer flex circuits, up to 12 layers. Especially long flexible circuits for hi-tech applications.

All of our flex PCB products are IPC standard certified with Class II or Class III as customer needs. XPCB’s goal is to provide top-notch flex PCBs to the department dedicating to electronic research & development. Whether you are a design company or end  product manufacturer, we are more than happy to offer you with our professional flex PCB solution.

To maximize the odds of “Right at First Design” , we can provide in-depth engineering support for each stage, from layout drawing, mechanical assemblies, functions testing to prototype return result analysis and refinement trial. Using our decade of flex PCB manufacturing experience, you can avoid multiple manufacturability & compatibility issues before put into production, and enjoy fast delivery within the shortest time possible.

Contact us now at [email protected], or upload Gerber file below to start the cooperation that will provide your business with consistently high quality flexible printed circuit board.
