10 layer rigid flex pcb by XPCB Ltd

10L VR Rigid Flex PCB

Categories: IoT & IIoT, PCB Fabrication, Rigid Flex PCB Tags: rigid flex, rigid flex circuit, rigid flex pcb, rigid flex pcb stackup
Share
  • Description

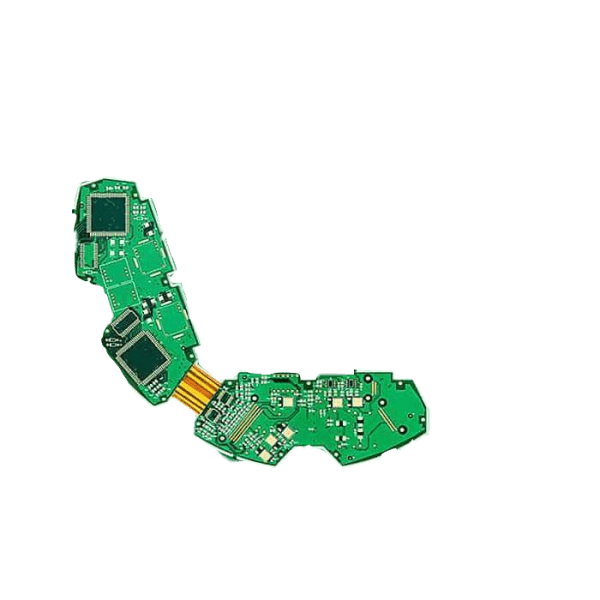

10 layer rigid flex PCB prototype by XPCB


Product Description


This rigid flex PCB is 10 layer design with 2.0mm final thickness. Both inner & out copper are 1 OZ. Stack-up is 4R+2F+4R. It is installed inside a VR Hemet. Min Line Width/Space is 4 mil.




Specifications Chart




Layer10L
Structure4R+2F+4R
Thickness1.0mm
Min Line Width/Space is 4 mil
FinishENIG
ApplicationVR Hemet
FeatureHigh layer count






Our Rigid-Flex PCB Service


XPCB is a leading Rigid-flex PCB manufacturer based in Shenzhen, China. With decades of experience in PCB manufacturing and up-to-date  manufacturing equipments, we offer a single layer, 2 layers rigid flex PCB, multilayer flex circuit prototyping, and turnkey assembly service.

●Max board size: 500 x 1000 mm

●1-26 layer doable

●PI (PoIyimide), FR4

●Final Thickness: 0.2mm-7mm




FAQ


● Q: What is your certificate?

A: ISO9001: 2015, ISO14001: 2015, UL, SGS, RoHS.

● Q: Do you provide component mounting service?

A: Yes, We provide both PCB production, PCB assembly (consigned or turnkey) service. You can send BOM & Gerber file to [email protected]

● Q: Do you make QTA prototype?

A: Yes, absolutely. We are especially good at QTA for rigid-flex PCB &flex PCB. Welcome to try out our amazing speedy service.



PRODUCT ENQUIRE
