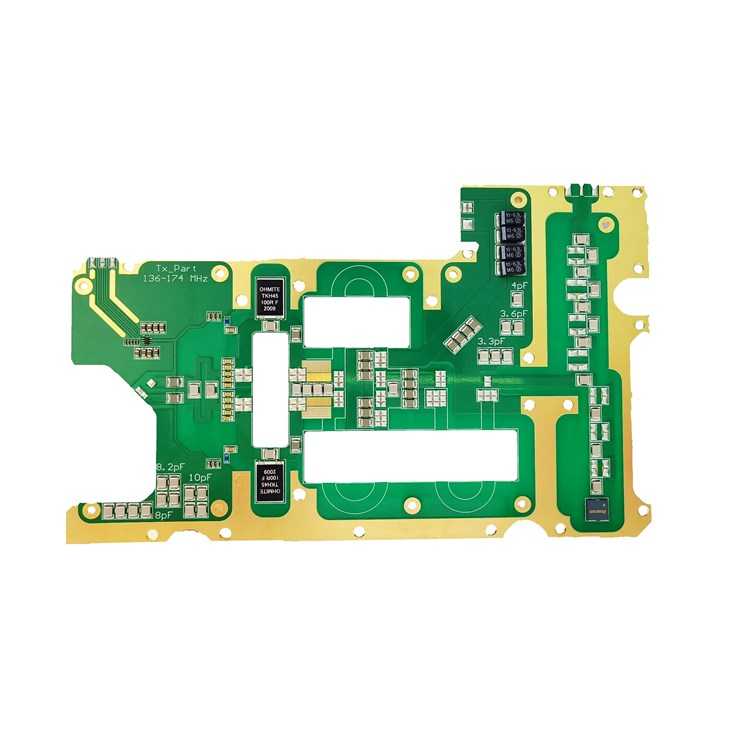

rogers PCB manufacturer China-thumbnail

Rogers 4350B RF PCB Manufacturer

Build affordable RF PCB prototype at xpcb.com now. High-Frequency PCB manufacturer & assembler from China. Dedicated to Automobile anti-collision application, satellite RF PCB…

Categories: PCB Fabrication, RF PCB
Share
  • Description
  • Reviews (0)

Radio Frequency (RF) Rogers PCB Manufacturer

Radio Frequency PCB, short for RF PCB, is one of the fast-growing  PCB technology in recent years, especially in satellite communication systems, military equipment, broadband access, and optical data networks areas. It is defined between 500 MHz and 2 GHz. The prototyping and volume production of RF PCB are two key process after design work is done.

Rogers PCB manufacturer

Rogers PCB Example

Item Specs
Product:
RF PCB
Material:
RO4350B & FR-4
Layer:
4L
Finish:
ENIG 2u''
Highlights:
filled & capped vias

Rogers PCB Manufacturer

rf pcb manufacturer

RF PCB Design FAQ

In our experience with RF PCB designers or engineers, the most asked question is “How do I choose the correct laminate  for particular project?”  Whether out of cost consideration or performance, laminate selection makes a big impact.  Below are a few guidelines for refrence:

1.Best Practices of Selecting Material for RF PCB

  • Similar Dielectric Constants: In RF PCB design, Non-uniform Dks in substrates may cause performance problems. Working with the PCB fabricator will ensure as close a Dk match as possible.
  • Similar Coefficient of Thermal Expansion (CTE): In RF PCB design, differing CTEs of the laminate substrates are likely to cause functional failures and reliability concerns. Therefore when choosing laminates, CTE needs to be ensured similarly.

  • Tight Substrate Bonding: How tightly substrate layers bond has a big impact on Dk. Working with the PCB fabricator will help avoid choosing a material set that may negatively impact Dk performance.

  • FR-4 Not Recommended: Note that FR-4 doesn’t have the same level of precise dielectric constant and thickness control as specially-formulated RF material.  Don’t use it alone for RF applications.

  • Smooth Foil Prefered: Due to the skin effect, the smoother copper foil gets, the less resistive losses occur.

1.1 Available Material for RF PCB

Stock Material for RF PCB Tg Td Dk Df CTE-z
(Pre-Tg)
Thermal
Conductivity
Metric
°C
°C
@10GHz
@10GHz
ppm/°C
W/m*K

PDF download button Rogers RO3003
ceramic-filled PTFE

-
500°
3.0
0.0013
25
0.5

pdf icon copy min Rogers 4350B RF PCB Manufacturer Rogers RO4350B
 High Frequency Circuit

280°
390°
3.5
0.0037
32
0.69
pdf icon copy min Rogers 4350B RF PCB Manufacturer Rogers RO4450F
Bondply
>280°
390°
3.52
0.004
50
0.65

pdf icon copy min Rogers 4350B RF PCB Manufacturer RT/duroid 5880

-
500°
2.2
0.0009
237
0.2

pdf icon copy min Rogers 4350B RF PCB Manufacturer I-Tera MT40

200°
360°
3.45
0.031
55
0.41

pdf icon copy min Rogers 4350B RF PCB Manufacturer Isola FR408HR

180°
360°
3.67
0.012
60
0.4

pdf icon copy min Rogers 4350B RF PCB Manufacturer Isola I-Speed

180°
360°
3.64
0.006
60
0.6

pdf icon copy min Rogers 4350B RF PCB Manufacturer Astra MT77

200°
360°
3.0
0.0017
50-70
0.45
RF PCB Inquiry & Quote

China RF PCB manufacturer

RF PCB Capability

Item Specs
Layers Count:
2-20
Laminate:
Rogers RO5880, RO5870, RO3003, RO4003C, RO4350B
Arlon 25N/25FR, Taconic TLG, ISOLA MT40, ISOLA MT77
Specialty
Controlled impedance, hybrid build, stacked microvias
Dielectric thickness
0 .1mm-30mm
Copper weights(finished)
1/2 to 2 OZ
Minimum track and space
0.075mm/0.075mm
Maximum dimensions
580mm x 1010mm
Surface Finishes
HASL, OSP, ENIG, Immersion Tin, Immersion silver
Back drilling
≤16mil

Laser Cutting Machine

Depaneling, separating, and singulating individual RF circuit boards from an array.

Laser Direct Image

direct exposure printed circuit board (PCB) graphics on a circuit board coated with photosensitive material

Plasma Cleaning

removal of impurities and contaminants from surfaces

Etching Line

 removal of unwanted copper (Cu) from the circuit board.

Quality Report

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report
COC Rogers 4350B RF PCB Manufacturer
Outgoing report from XPCB Rogers 4350B RF PCB Manufacturer
board thickness report Rogers 4350B RF PCB Manufacturer
MICROSECTION REPORT Rogers 4350B RF PCB Manufacturer
solderability test report Rogers 4350B RF PCB Manufacturer
e test report Rogers 4350B RF PCB Manufacturer

Why Choose XPCB™

RF PCB is a kind of special printed circuit board with high electromagnetic frequency. Generally speaking, high frequency can be defined as a frequency above 1GHz. As RF PCB carries prominent physical properties, accuracy, and technical parameters, it is often used in automobile anti-collision systems, satellite systems, radio systems, and other hi-tech fields.

RF PCB’s fabrication is much more complicated than standard PCB due to its high requirement for signal transmission and special laminate properties.

Extensive experience in popular RF PCB laminate materials, RF PCB materials are very different from FR-4 or Polyimide material, it requires more delicate treatment to prevent signal loss issue.

With years of experience in RF PCB fabrication, XPCB has cultivated a professional team who know how to turn your RF PCB concept into high quality prototypes at affordable price.

If you are looking for a reliable and affordable RF PCB manufacturer, XPCB is your choice. You will enjoy

  • 12 Hour Quick Response
  • Free DFM
  • Quick Turnaround Service

Need a RF PCB quote? Let’s get started! Upload your Gerber file and BOM below to get instant quote from one of the professional RF PCB manufacturers in China.
