Doubled-sided ElectroPlated Gold Flex PCB Manufacturer

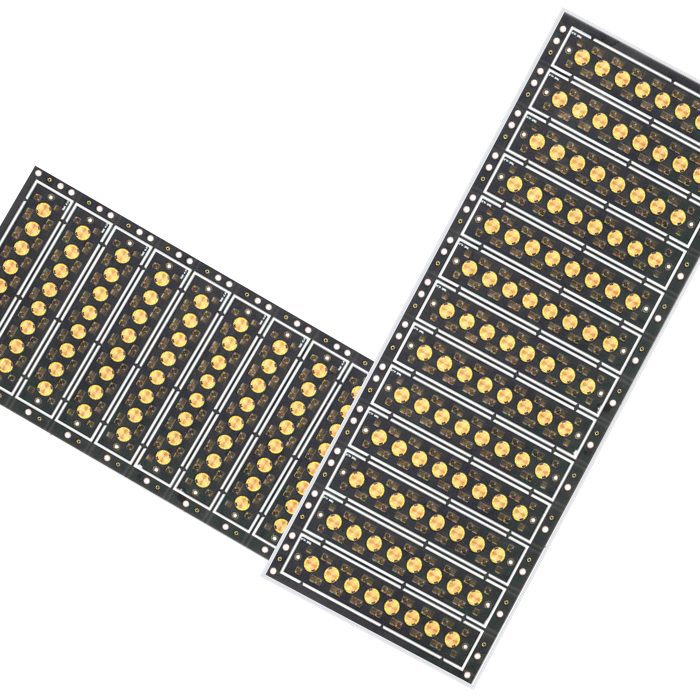

An doubled-side flexible PCB prototype made by x-pcb.com, it comes with 3u” Electroplated Gold finish. If you have similar flex PCB quote needed, contact us now! We are an professional flex PCB manufacturer from China.

Categories: PCB Fabrication, Flexible PCB
Share
  • Description
  • Reviews (0)

Quick-turn Flex PCB Manufacturer

China Flex PCB Manufacturer

Product Description

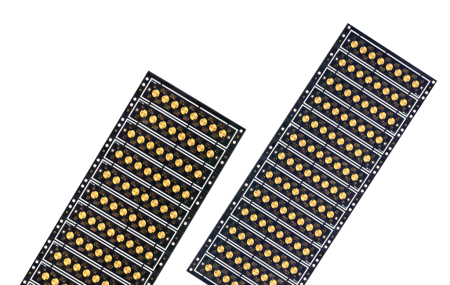

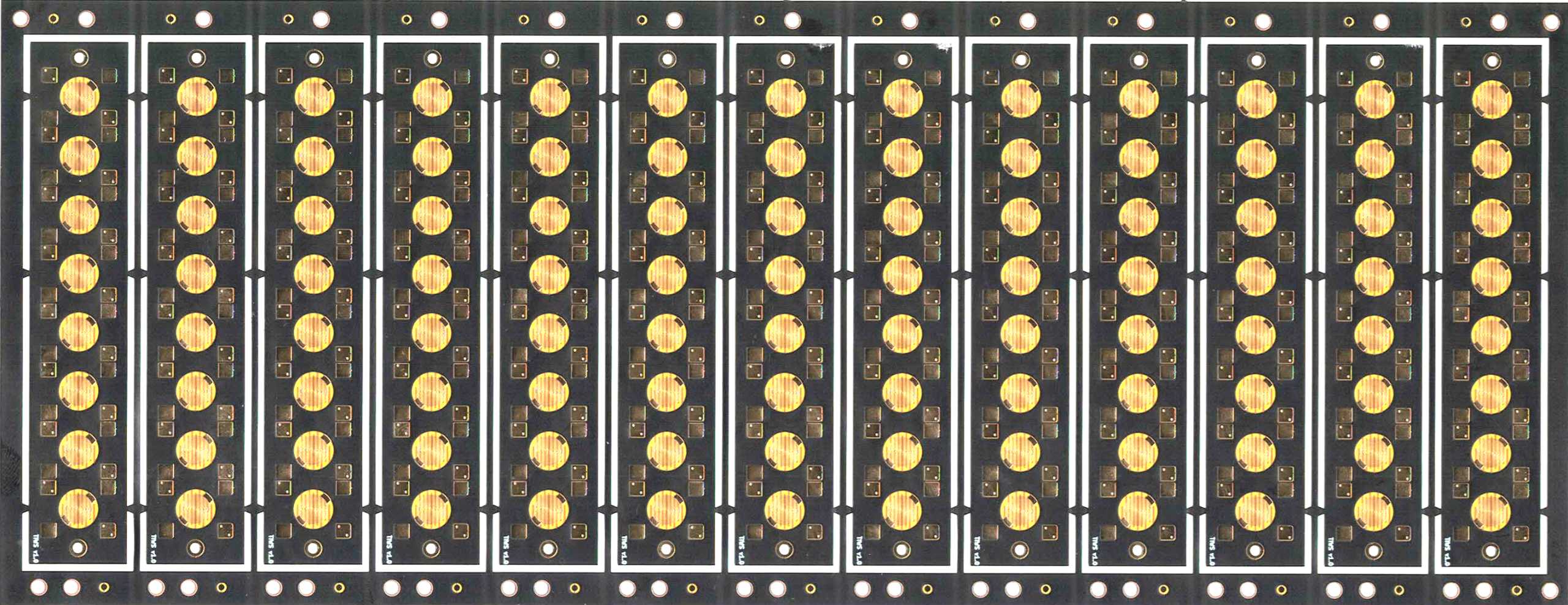

This is a doubled-sided flexible PCB with black coverlay. Unlike most flex PCB, this design uses Electroplated Gold instead of ENIG. Gold thickness is 3u”.

We built it with standard lead time : 7 Days. If need quick-turn PCB, we can shorten to 4 Days.

Other specs: 0.1mm thickness, 18um copper weight.

flexible pcb cost

Flex PCB Manufacturer Specs

Specifications Chart

flexible pcb cost
Item Details
PCB Type
Flexible PCB
Layer
doubled-sided
Final Thickness
0.1mm
Finish
ElectroPlated Gold (3u'')

Flex PCB Equipments

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Flex PCB Capability

Flexible Circuit's - Technical Capability
Item Specification
Layer
1-12
Max Size
20"x40"
Substrate
Polyimide; LCP
Final Thickness
0.12-0.4 mm
Min Trace/Space
2mil/2mil
Via Types
Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad
Copper Weight(finished)
25-140um
Min Laser Via
3mil
Min Mechanical Hole
4mil
Impedance Control
YES
Stifferner Material
FR-4, Polyimide, SUS
Surface Finishes
LF HASL, OSP, ENIG, Immersion tin, Gold fingers
Available Service
Bare Board Production; Consigned Assembly; Turnkey Assembly

Certificate of Compliance

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report
COC Doubled-sided ElectroPlated Gold Flex PCB Manufacturer
Outgoing report from XPCB Doubled-sided ElectroPlated Gold Flex PCB Manufacturer
board thickness report Doubled-sided ElectroPlated Gold Flex PCB Manufacturer
MICROSECTION REPORT Doubled-sided ElectroPlated Gold Flex PCB Manufacturer
solderability test report Doubled-sided ElectroPlated Gold Flex PCB Manufacturer
e test report Doubled-sided ElectroPlated Gold Flex PCB Manufacturer

Flex PCB Assembly

Besides flexible circuit manufacturing, we also offer turnkey flexible circuit assembly service at an affordable cost.  You can rely on us for BOM checking, component souring, stencil to SMT under one roof to meet your urgent lead time.

Flex PCB assembly service is one of our advantages. We have lots of successful experience at assembling 2 layers, 4 layers, 6 layers, 8 layers, 10 layers, and 12 layers flex PCB, supported by our skillful staff and advanced SMT lines.

  • Flexible Circuit Assembly
  • Rigid-flex PCB Assembly
  • Prototype Assembly
  • Small Run Assembly
  • BGA Assembly
  • Thru-hole Assembly
  • Quick-Turn Assembly
PCB assembly service
fast PCBA service

Why Choose Us

Quick-turn Flex PCB Manufacturer

XPCB Ltd is a decade old flex PCB manufacturer & assembler in China. With more than 15 years experience as a PCB supplier, we are known for our expertise in flex PCB manufacturing & assembly, including flex PCB prototype, low volume, medium volume and high volume flexible PCB.  Meanwhile we also provide one-stop flex PCB assembly service for customers who need affordable and quick turnaround PCBA service.

XPCB Ltd manufactures a variety of flexible printed circuit boards, from single layer flex PCB, double-sided flex PCB to multilayer flex circuits, up to 12 layers for Automotive, bluetooth earbuds, handheld PDAs and intricate medical electronics.

All of our flex PCB products are IPC standard certified with Class II or Class III as customer needs. XPCB’s goal is to provide top notch flex PCBs to the department dedicating to electronic research & development. Whether you are a design company or end product manufacturer, we are more than happy to offer you with our professional flex PCB solution.

To maximize the odds of “Right at First Design” , we can provide in-depth engineering support for each stage, from layout drawing, mechanical assemblies, functions testing to prototype return result analysis and refinement trial. Using our decade of flex PCB manufacturing experience, you can avoid multiple manufacturability & compatibility issues before put into production,and enjoy fast delivery within shortest time possible.

Contact us now at [email protected], or upload Gerber file below to start the cooperation that will provide your business with consistent high quality flexible printed circuit boar
