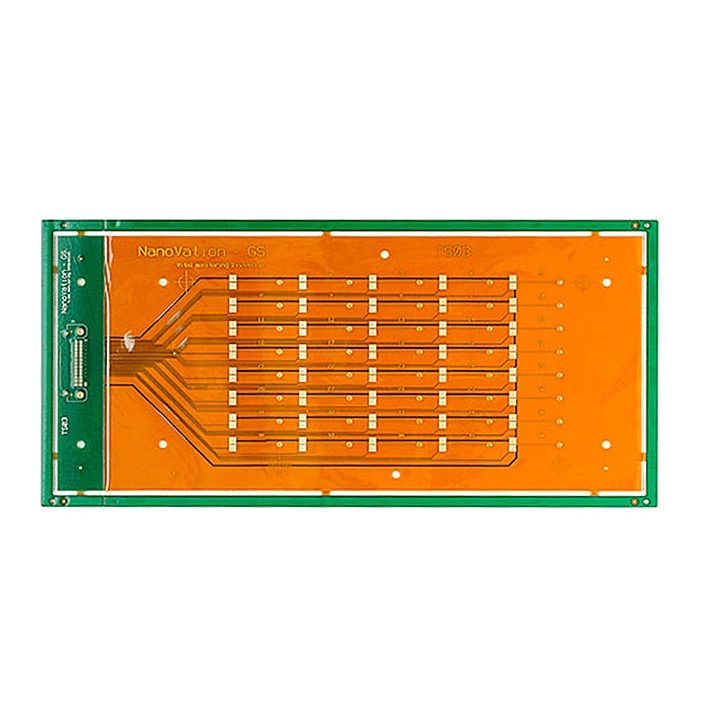

DRONES PCB

4 Layer Rigid Flex PCB

4 layer rigid flex pcb manufacturers, factory, suppliers from China. The purpose of rigid flex pcb design guide is to enable you to design a highly reliable with the most market competitive price.

Categories: Consumer Electronics, PCB Fabrication, Rigid Flex PCB Tags: rigid flex, rigid flex pcb, rigid flex pcb stackup
Share
  • Description

4 LAYER RIGID FLEX PCB MANUFACTURER CHINA

Adrian Cooper

CTO

XPCB does fantastic fabrication job for our 4 layer rigid flex circuit prototype.  We are able to start testing well ahead of schedule because of their expedited service!

SPECIFICATION
Layer
4L
Stack-up
1R+2F+1R
Thickness
1.2mm
Copper Thickness
1 OZ
Min Line Width/Space
4 Mil
Finish
ENIG
4 Layer Rigid Flex PCB Stackup

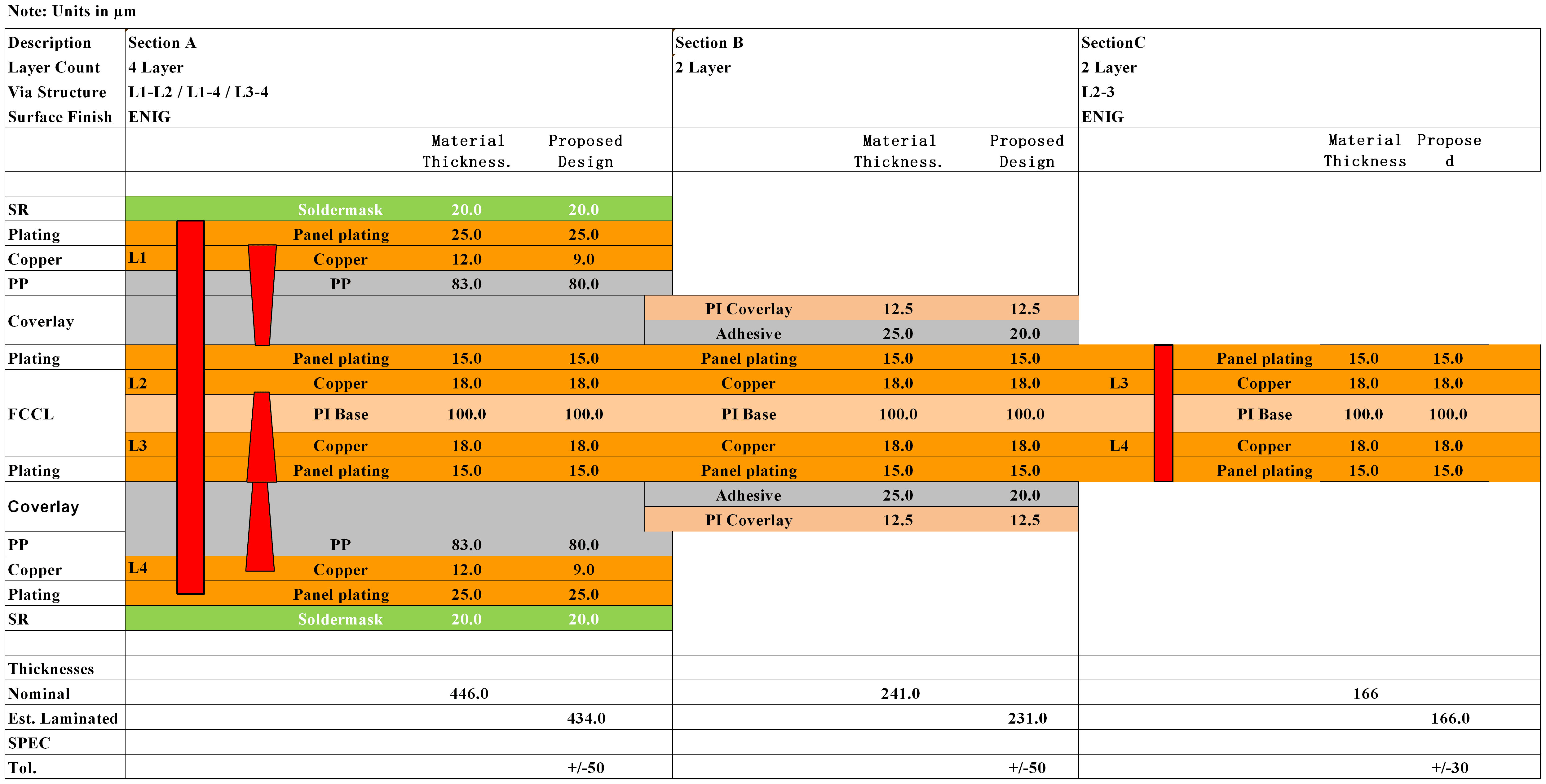

4 Layer HDI (1R+2F+1R) Rigid Flex PCB Stacku-1p

Check Our Equipment

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Send us Inquiry

Rigid Flex PCB Fabrication Capability

 5/5
  • Material

    Flex : Polyimide
    Rigid: FR-4

  • Thickness

    0.2mm-7mm

  • Finish

    ENIG, Imm Tin, Imm Ag, OSP, Gold Finger

  • Inner Copper

    1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz

  • Size

    2- 4 Layers: 500 x 1000mm
    >=5 Layers: 500 x 800mm

  • Layer

    1-26 Layer doable

  • Min Trace/Space

    3/3mil

  • Min Hole Ring

    Inner (5mil -12mil) / Outer (4mil-10 mil)

Professional Quality Inspection Reports

CoC Report

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report

XPCB Rigid Flex PCB SERVICE

 5/5

Rigid-flex PCB technology offers clear benefits with reduced weight, space, durability, and reliability.





That is why it is rercognized by many PCB designers as ideal solution for modern, highly durable and lightweight electronic products such as as wearables, medical devices, and mobile wireless products.



After successfully design and layout your rigid flex PCB, it is time to qualify your fabricator-the critical partner who turn your fantastic concept into tangible circuit board. Thought out there with so many available PCB fabricators, not much make rigid flex PCB as smooth and experienced as XPCB do.

 5/5

XPCB has been dedicated  to rigid flex PCB and flexible circuit from founding date.  From single layer, double-sided flex circuit, 4 layer rigid flex PCB to multilayer, we have wealth of project experience and  tracking records from diversfied industries.



Besides extensive experience on rigid flex circuit manufacturing, we also provide solid support on  polyimide substrate stock, from Kapton® to Pyralux®.





On top of that, customer could expect practical suggestions from our professional engineer team on  how to  construct their rigid flex PCB  to highest  reliability and manufacturability. If you are looking for a reliable rigid flex PCB manufacturer, here you have it, upload your Gerber file and write your qty below and get instant quote!

Keywords:  #rigid flex PCB, #4 layer rigid flex PCB, #rigid flex stackup, #flex-rigid pcb, #4 layer rigid flex cost, #4 layer rigid flex quote, #4 layer rigid flex pcb supplier, #4 layer rigid flex factory, #4 layer rigid flex manufatcurer, #4 layer rigid flex manufaturing, #4 layer rigid flex fabrication, #4 layer rigid flex material,
