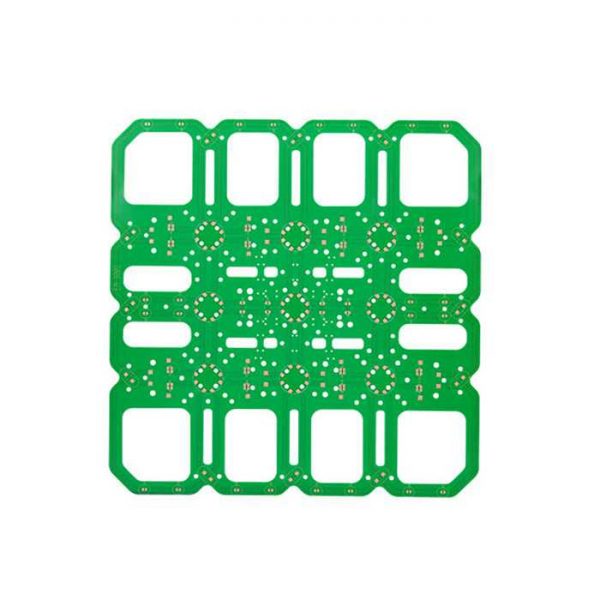

Nuclear Magnetic Resonance PCB

Layers ： 1L
Thickness ： 0.8mm
Out Layer Copper Thickness : 1 OZ
Inner Layer Copper Thickness : /
Min hole size ： —–
Min Line Width/Space : 8mil
Surface finish : OSP
Application ：Nuclear magnetic resonance
Features : Max size
