Prototype HDI PCB Manufacturer

XPCB Limited China has rigid flex pcb prototype with high-quality, leading rigid flex HDI pcb. We are your one-stop China HDI pcb manufacturer and supplier for rigid-flex and flex PCBs prototype.

Categories: ELIC HDI PCB, PCB Fabrication
Share
  • Description

XPCB™: Quick-Turn HDI PCB Prototype | Elic HDI PCB Manufacturer

quick turn HDI prototype

XPCB™ Description

XPCB Limited is a PCB manufacturer dedicated to all sorts of  HDI PCBs, including HDI flex PCB, rigid HDI PCB, rigid-flex HDI PCB. Among them, Rigid HDI PCB is the most common type. Our HDI PCBs are widely used in telcom, satellite, automotive, semiconductor and other high-end industries.  Below are our basic capability:

    • Layer: 2-20 layers, 1+5 Tiers
    • Board size: 20”*35”
    • Thickness: 0.2mm-6.0mm
    • Impedance: 5%
    • Min hole size: 0.076mm( Laser-drilled),0.15mm( Mechanical drill)
    • Finish: HASL, HASL-LF, Gold Plating, OSP, Immersion Ag, Immersion Sn
    • Expedited Service:   15hrs: double-sided;   24hrs: 4 layer;   36hrs: 6-8 layers;  60hrs: 10 layer;   72hrs:10 above

HDI PCBs Display

8L HDI PCB prototype

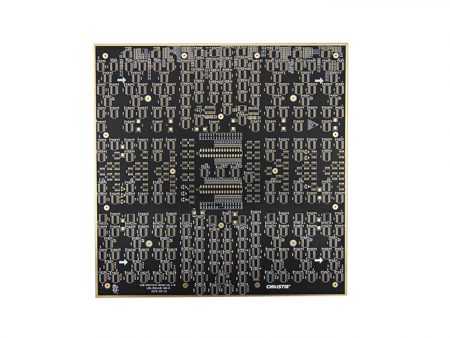

8L HDI Rigid PCB with 1 Tier
10L 1 Tier HDI Rigid PCB manufacturer
10L 1 Tier HDI Rigid PaCB
6L HDI Rigid PCB manufacturer
6L HDI Rigid PCB with 1 Stage
8L HDI PCB supplier

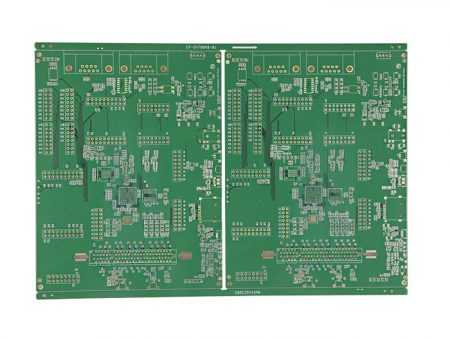

8L 2 tier HDI Rigid PCB
ELIC hdi pcb manufacturer
8L 1 tier and half hole HDI Rigid PCB
hdi pcbs manufacturer

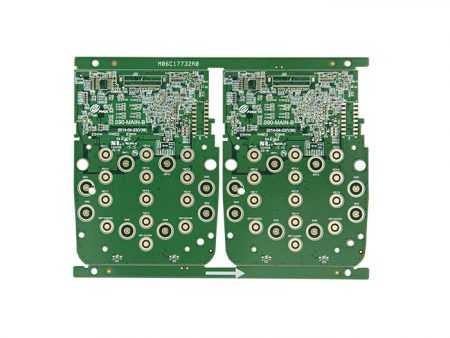

6L Rigid PCB with HDI
HDI Flex PCB
4L 1 Tier HDI PCB
6L 2 Tier HDI PCB
8L 2 Tier HDI PCB
HDI Flex PCB

Flexible PCB Prototyping



Layer:6L 2 Tier
Thickness:1.3mm
Size:118.29mm*113.12mm
Min blind vias:0.1mm
Min buried vias:0.2mm
Min Trace:0.084mm
Min Space:0.089mm
Finish:ENIG+OSP



4L 1 Tier HDI PCB

4L HDI Rigid Board with 1 Tier Prototype HDI PCB ManufacturerLayer:4L 1 Tier

Thickness:0.8mm

Size:70mm*86mm

Min Trace:0.12mm    Min Space:0.075m

Min Hole Size:0.1m

Finish:ENIG+0SP

Application: Smart Watch

6L 2 Tier HDI PCB

6L 2 tier HDI Rigid PCB Prototype HDI PCB ManufacturerLayer:6L 2 Tier

Thickness:1.0mm

Size:92mm*118mm

Min Trace:0.075mm

Min Space:0.075mm

Min Hole:0.1mm

Finish:ENIG

Application: Mobile Phone

8L 2 Tier HDI PCB

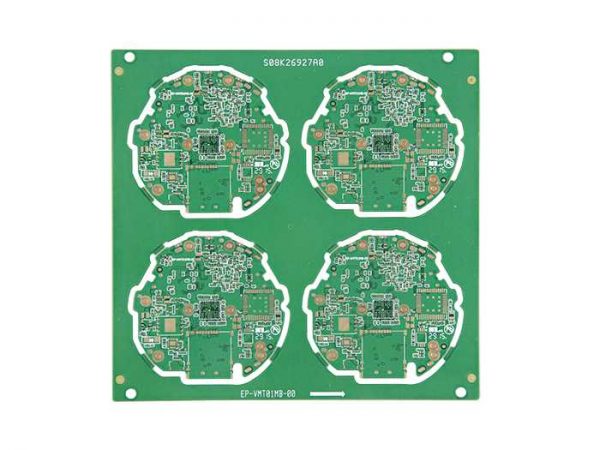

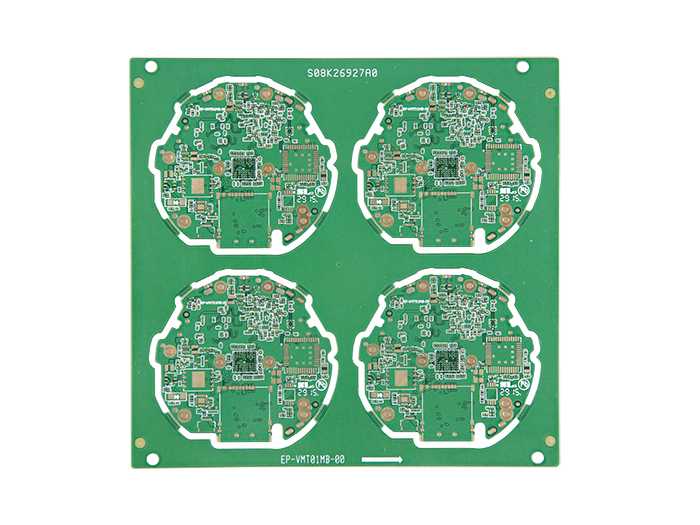

8L 2 stage HDI PCB Prototype HDI PCB Manufacturer

Layer:8L 2 Tier
Thickness:1.0mm
Size:118.29mm*113.12mm
Min blind vias:0.1mm
Min buried vias:0.2mm
Min Trace:0.084mm
Min Space:0.089mm
Finish:ENIG+OSP

Application: Car DVR

HDI PCB Service

  • Multi-layers HDI PCB(1-20L)
  • Blind, buried and plugged vias
  • 3 mil Trace/ 3 mil Space
  • Max Panel Size 25"x17''
ELIC HDI PCB hdi pcb manufacturer
  • ENIG, OSP, HASL-LF, Via Filling
  • Smallest Hole Size: 0.1mm/0.004"
  • FR4, Tg150, Tg170, Roger, Dupont
  • 1+N+1, 2+N+2, 3+N+3, Any layer

Equipment Display

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

Quality Report

  • CoC Report
  • Outgoing Report
  • Impedance Mesurement
  • Microsection Report
  • Solderability Report
  • E- test Report
COC Prototype HDI PCB Manufacturer
Outgoing report from XPCB Prototype HDI PCB Manufacturer
board thickness report Prototype HDI PCB Manufacturer
MICROSECTION REPORT Prototype HDI PCB Manufacturer
solderability test report Prototype HDI PCB Manufacturer
e test report Prototype HDI PCB Manufacturer

Why Choose Us

XPCB Ltd offers consistent High-Density Interconnect(HDI) printed circuit board fabrication service at affordable prices.



On the raw material aspect, we use authentic laminates from famous FR-4 brands like Isola, Nelco, or suggest equivalent substitution from China Top Laminate Brands like SY, KB  which allows the design team to minimize cost without compromising performance.



To cope with growing HDI technology, we imported a full range of advanced equipment integrated with cutting-edge technology from German and Japan. Laser drilling machine, Laser direct imaging machine etc…So for us, HDI Rigid flex circuits, HDI flex PCB, HDI Rigid board are all buildable with superior performance guaranteed.

Apart from HDI PCB fabrication service, we also offer one-stop component sourcing, component mounting service for all HDI PCB orders.


We specialize in quick-turn HDI PCB prototype, small run production. Our engineer team will thoroughly check incoming design and offer stack up and wiring optimization suggestions from a manufacturing point of view.





Our standard lead time for bare HDI PCB project is  4-7 working days, for HDI PCBA service is  at least 2 week, actual lead time varies with component quantity and types.
