6L Rigid-Flex PCB Quote from x-pcb.com

x-pcb.com offers quick rigid-flex PCB quote and fabrication service.

Need rigid-flex PCB price for your project? Contact us now!

Categories: Consumer Electronics PCB, PCB Fabrication, Rigid Flex PCB Tags: rigid flex, rigid flex pcb, rigid flex pcb stackup

Description

We Offer Quick Rigid-flex PCB Quote | XPCB Ltd

Product Description

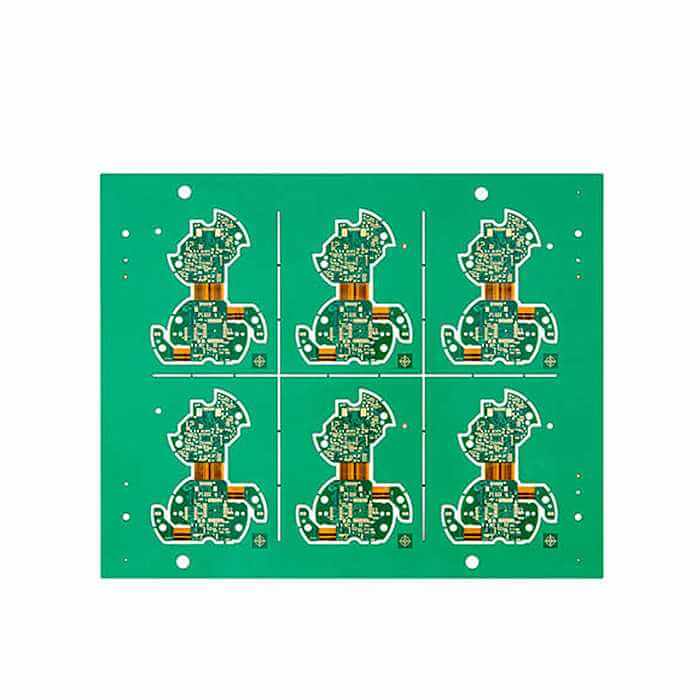

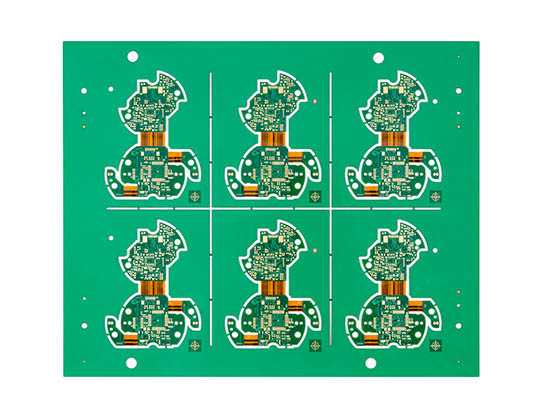

This is a nice Rigid-flex PCB used in Bluetooth, it is designed as 6 layer with 2R+2F+2R stackup which is a common rigid-flex PCB stackup in our manufacturing history.

Like most bluetooth rigid-flex PCBs, it is tiny with HDI structure, fine line width and strict impedance control.

Specification Chart

Specs	Details
Layer	6L
Finish	ENIG
Thickness	1.0mm
Min Line Width/Space	3mil
Lead Time	10 Working Days

Rigid-flex PCB Fabrication Ability

Rigid-flex PCB's—Technical Capability

Item	Specs
Layer	2-26 Layers
Max Size	500 x 1000mm
Finish	ENIG, Imm Tin, Imm Ag, OSP, Gold Finger
Thickness	0.2mm- 7mm
Min Hole Size	3mil
Copper Weight	1/3oz, 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz, 6oz
Min Trace/Space	3mil/3mil
Impedance Control	±10%
Stifferner Material	FR-4, Polyimide, Steel
Service	Quick-turn \| Turnkey Assembly

Our Equipment

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

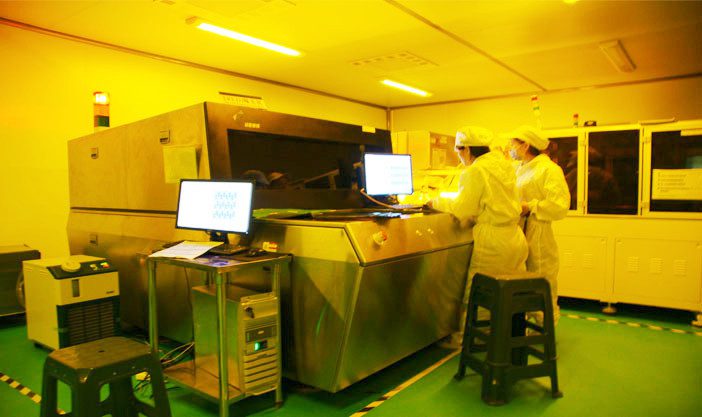

LDI Machine

Quality Reports

COC 6L Rigid-Flex PCB Quote from x-pcb.com

Outgoing report from XPCB 6L Rigid-Flex PCB Quote from x-pcb.com

board thickness report 6L Rigid-Flex PCB Quote from x-pcb.com

MICROSECTION REPORT 6L Rigid-Flex PCB Quote from x-pcb.com

solderability test report 6L Rigid-Flex PCB Quote from x-pcb.com

e test report 6L Rigid-Flex PCB Quote from x-pcb.com

Why Choose Us for Your Rigid-flex PCB Quote

XPCB Ltd is always trusted as a reliable supplier when it comes to rigid-flex PCB job.

We have been dedicating ourselves to advanced technology related to rigid flex printed circuit boards to make sure customer’s advanced requirements are met.

Being our client, you can always expect professional DFM support at early stage, smooth communication in the middle stage and on-time delivery after place order.

Quick turn rigid flex PCB is our most praised service, from single-layer rigid flex circuit, double-sided rigid-flex circuit to multilayer rigid-flex board with blind or buried vias. We can build up to 26 layers rigid flex PCB board with quality and lead time guarantee.

Need rigid-flex PCB quote for your lastest project?

Contact us now at [email protected]. You will be hearing from one of the most exceptional rigid-flex PCB manufacturers in China.
