Rigid Flex PCB Overview

Categories: PCB Fabrication, Rigid Flex PCB Tags: rigid flex, rigid flex circuit, rigid flex pcb, rigid flex pwb
Share
  • Description
What is Rigid-flex PCB?

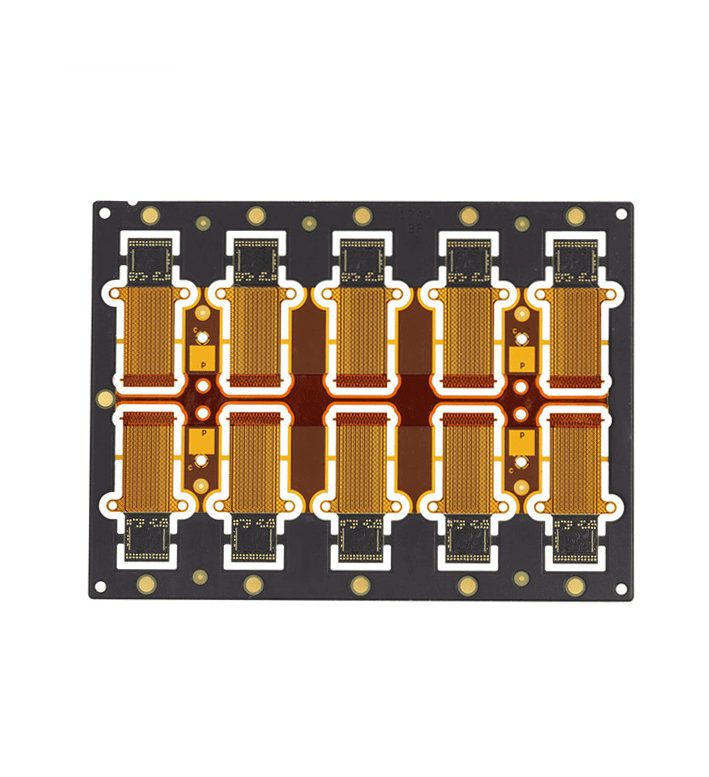

Rigid flex circuits and assemblies are hybrid constructions consisting of rigid and flexible substrates laminated together into a single structure. Rigid Flex products integrate the features of a PCB with the advantages of flexible printed circuit (FPC) technology.The typical rigid-flex PCB circuit includes two or more conductive layers that comprise either flexible or rigid insulation material between each one – the outer layers may have either exposed pads or covers. Conductors are found on the rigid layers, while plated through-holes are found in both the rigid and flexible layers.



What Advantages Rigid-flex PCB has?



•  3D installation

• Higher connectio reliability

• More mechanical design look

• Pakage, Size & Weight Reduction

• Fewer parts needed



Reliable Rigid-flex PCB Solution

So far, XPCB Ltd has served numerous clients from diverse sector  such as medical, telecommunications and manufacturing with our superior quality Rigid-flex PCB manufacturing services. We have an in-house quality control department to ensure your boards fabricated and assembled properly.

Our extensive experience in Rigid-flex PCB fabrication and advanced equipments enable us to meet various customization requirements as regards all PCB specs, like

  • Base material
  • Rolled or annealed copper
  • Adhesive or adhesiveless core
  • Coverlay or soldermask
  • Static or dynamic flex
  • Coating

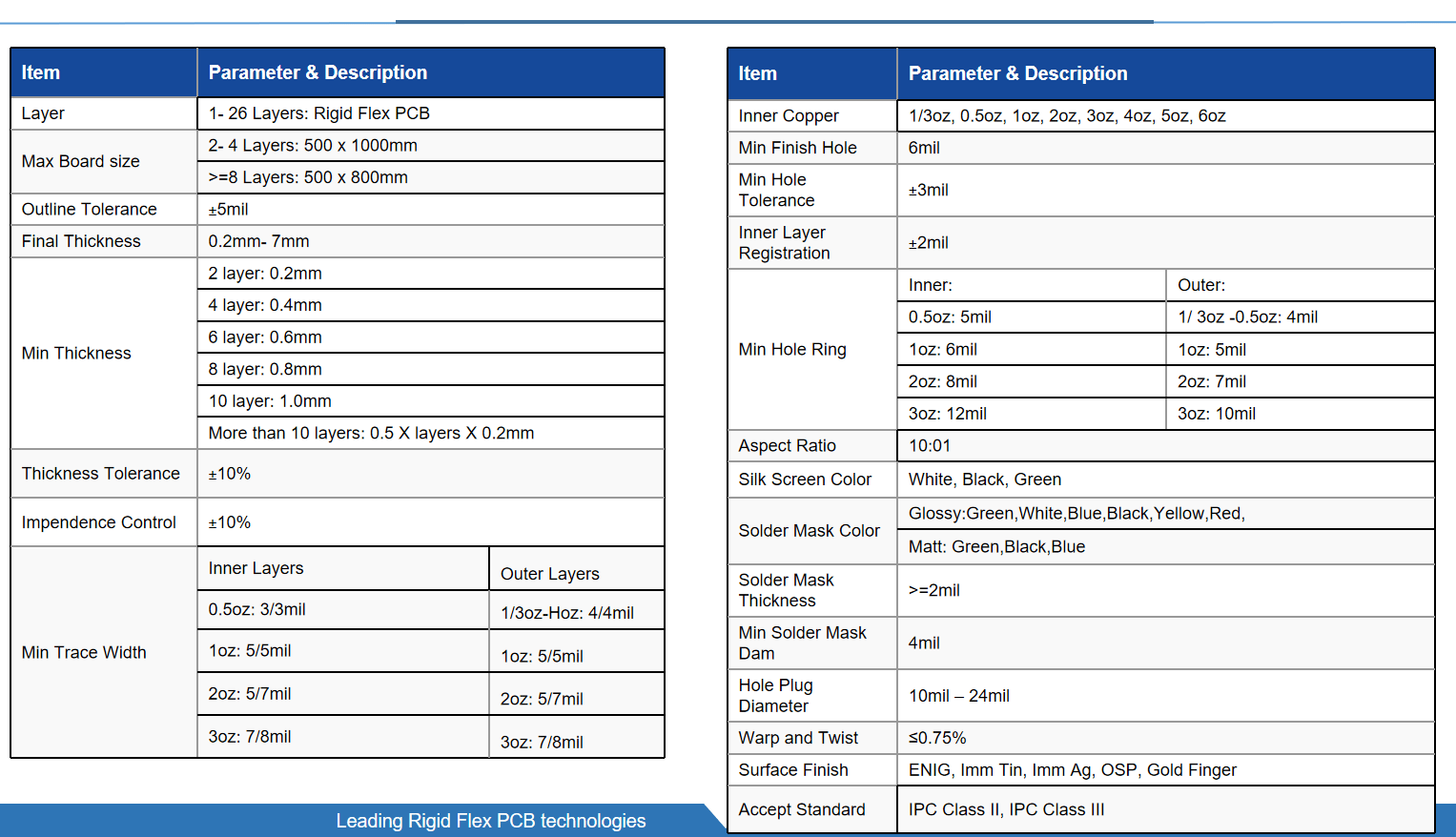

Here is our powerful Rigid-flex capability sheet:

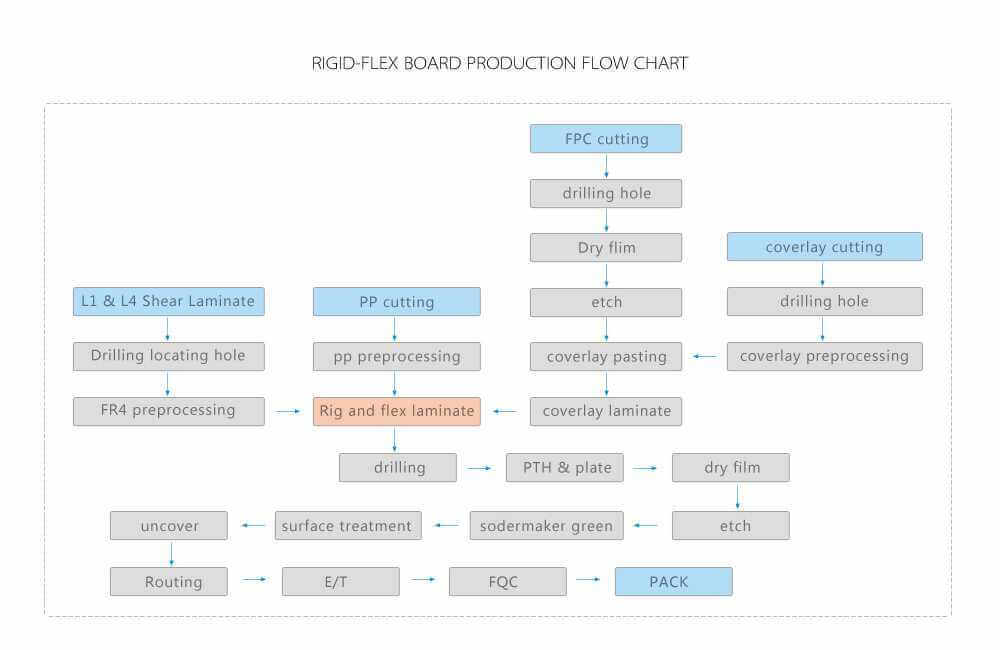

Rigid Flex PCB Production Flowchart



Why Choose XPCB For Your Rigid flex PCB Project?

As one of long-established PCB manufacturers in China, XPCB has over 10 years of PCB fabrication experience with rigid-flex PCB fabrication as special strength.   Before put into production, we have highly-trained engineer team to do DFM checking. With this seamless service from design checking to procedure control, our rigid-flex PCB on-time delivery rate reaches up to 99% while rejection rate is as low as 1%. To get started, fill out inquiry form below





PRODUCT ENQUIRE
