10 Layer Rigid Flex PCB –

This is a 10 layer rigid flex PCB built by XPCB Ltd, applied in medical electronics. It is with 2R+2F+2F+2F+2R stackup, 2.0mm final thickness. XPCB is a dedicated manufacturer of rigid flex printed circuit board based in Shenzhen, China. We offer QTA, free DRC & DFM checking, turnkey assembly service.

Categories: PCB Fabrication, Rigid Flex PCB Tags: rigid flex, rigid flex circuit, rigid flex pcb, rigid flex pwb

Description

Quick-turn Rigid Flex PCB Manufacturer

We understand the critical importance of time in the fast-paced world of electronics manufacturing. That’s why we’ve developed a quick-turn rigid-flex PCB prototyping service that is designed to help you get your products to market faster.

With XPCB’s quick-turn rigid-flex PCB prototyping service, you’ll benefit :

Speed: We can produce your prototypes in as little as 24 hours, allowing you to test and iterate your designs more quickly.
Flexibility: Our flexible manufacturing processes can accommodate a wide range of design requirements, including complex multi-layer designs and custom shapes.
Quality: We use only the highest quality materials and processes to ensure that your prototypes meet your exacting standards.
Expertise: Our team of experienced engineers and technicians are available to provide DFM support and design guidance throughout the prototyping process.
Cost-effectiveness: Our streamlined production processes and efficient supply chain allow us to offer competitive pricing without compromising on quality.

Quick-turn Rigid Flex PCB Prototyping

5 and 6 layers rigid flex PCBs are very common in rigid flex PCB design, especially at consumer electronics sector. Below two PCBs are perfect illustration.

The 5 layer board for satellite camera is with 1R+3F+1R stackup, 1.6mm finish thickness, ENIG surface treatment. The min hole and min space are both 0.25mm while trace width is 0.15mm.

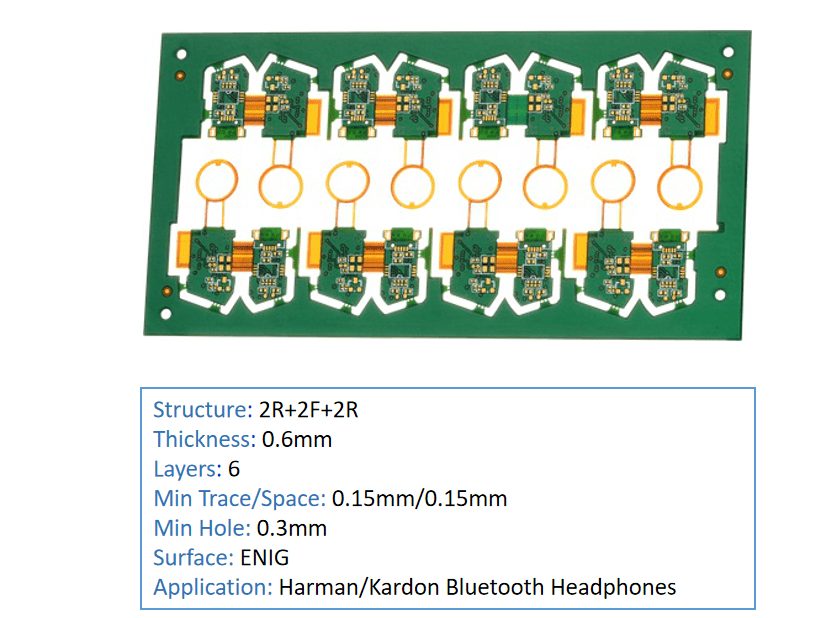

This board is a 6 layer HDI rigid flex pcb. Its overall board thickness is 0.6mm. The finished copper thickness is 2 OZ. Green solde mask is in the rigid area and amber cover film is in flex area.

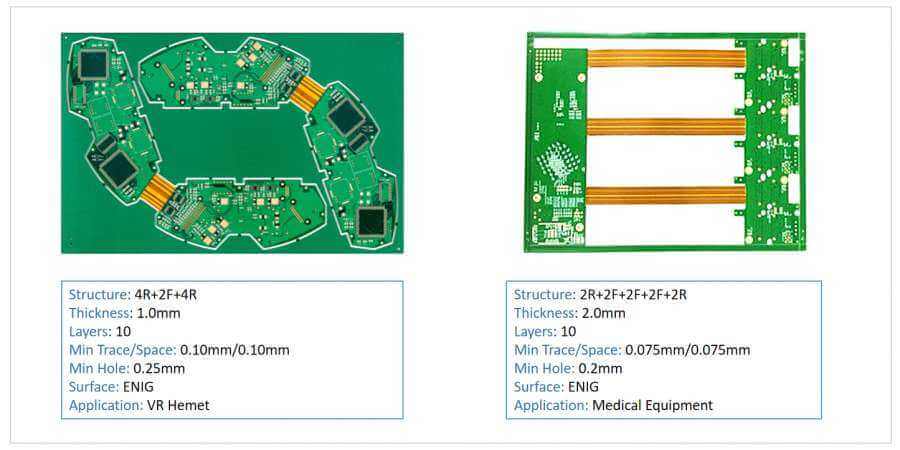

Medical industry used a lot rigid flex PCB due to its demand for higher connection reliability and smaller size. The 10 layers board below is just a great example.

It is with 2R+2F+2F+2F+2R stackup, 2.0mm final thickness. The Min trace width and space are the same-0.075mm, Min hole dimension is 0.2mm.

Quick-turn Rigid Flex PCB Stackup

10L Stackup

This stackup is created for a 10-layer rigid flex PCB that supports robotics application. It shows all the layer thickness, and drilling placement. There are buried vias in the FPC section and blind vias in the rigid section.

6L Stackup

This stackup is designed for electrocardiogram (ECG/EKG) which requires high density interconnection.

Stacked microvias can save space and increase density, offer greater flexibility concerning the inner connections, better routing capacity and less parasitic capacitance.

Get Instant Quote Now

Our Rigid Flex PCB Capability

XPCB Ltd is always trusted as a reliable supplier by many customers when it comes to purchasing rigid flex circuit boards. We have been dedicating ourselves to advanced technology related to rigid flex printed circuit boards to make sure all sorts of rigid flex PCB manufacturing requirements are met.

Having a brilliant team specialized in rigid flex circuit helps us quickly understand your entire design without asking you explain again over again. This would save you plenty of time and speed up the whole pre-order process considering it is a cross-timezone conversation. Being our client, you can always expect professional DFM support at early stage, smooth communication in the middle stage and on-time delivery after place order.

Quick turn rigid flex PCB is our most praised service, from single-layer rigid flex circuit, double-sided rigid-flex circuit to multilayer rigid-flex board with blind or buried vias. We can build up to 26 layers rigid flex PCB board with quality and lead time guarantee.

Tasked with building quick-turn prototype to validate your new concept? We provide expedited service that can both satisfy short delivery time & guaranteed quality. Entrusting your rigid flex PCB project with us, you can expect to receive your “first-build” prototypes fast at affordable cost.

If you are checking rigid flex PCB cost around, contact us now at [email protected] You will be hearing from one of the most exceptional rigid-flex PCB manufacturers in China.

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

We are ready to provide rigid flex PCB fabrication or assembly service for you right now. Capability up to 26 layer, Capable of below techniques: Gold fingers, Imm Tin, Imm Ag, Stiffener (PI / FR-4 / SUS material) , ENIG – RoHS, ENEPIG (Electroless Nickel Electroless , Palladium Immersion Gold, Soft bonding), OSP – RoHS. Fill out below inquiry form to have your project specialist:
