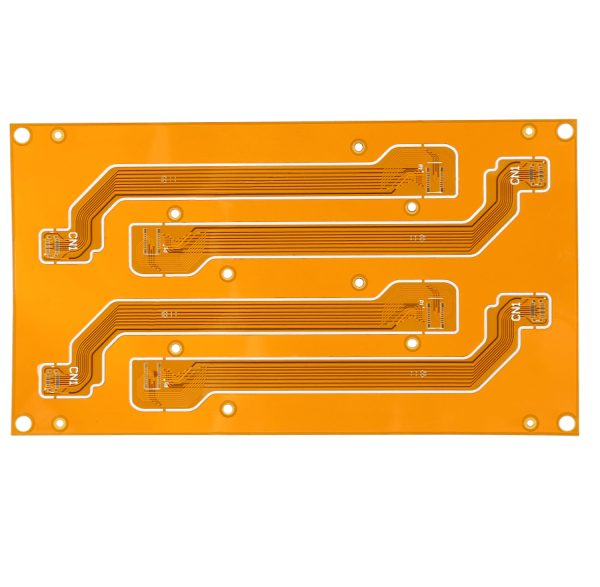

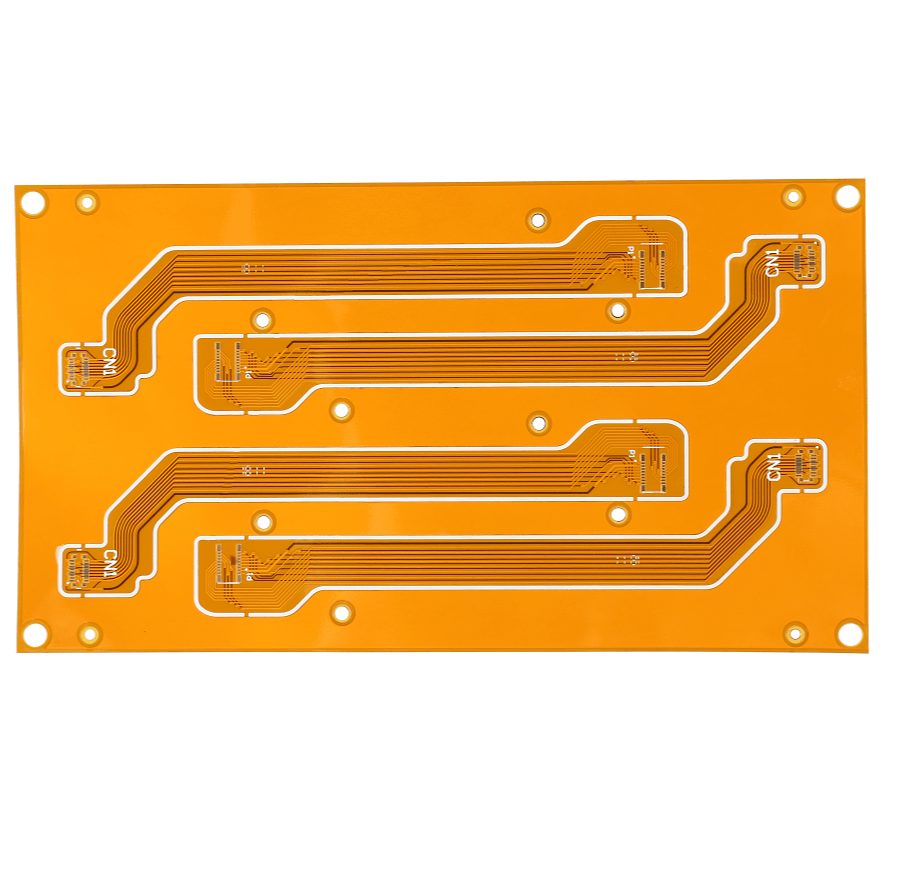

4 Layer Flex PCB Prototype

Categories: PCB Fabrication, Flexible PCB

Description

Flex PCB Prototype Manufacturer | Quick-turn Flexible PCB Prototyping

XPCB™ INTRO

XPCB Limited was founded with a focus on providing high-quality flex PCB prototyping services. We offer multi-layer flex PCB technology ranging from double-sided all the way up to 12 layers, from low volume runs up to large production. With our diverse capabilities in manufacturing processes such as blind vias or buried vias and controlled impedance, l we can accommodate any need you may have for your next project.

Flexible Circuit's - Technical Capability

Item	Specification
Layer	1-12
Max Size	20″x40″ inch
Substrate	Polyimide; LCP;
Final Thickness	0.12-0.4 mm
Min Trace/Space	2mil/2mil
Via Types	Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad
Copper Weight(finished)	25-140um
Min Laser Via	3mil
Min Mechanical Hole	4mil
Impedance Control	±5% or 10%
Stifferner Material	FR-4, Polyimide, SUS
Surface Finishes	LF HASL, OSP, ENIG, Immersion tin, Gold fingers
Available Service	Bare Board Production; Consigned Assembly; Turnkey Assembly

Stock Material for flexible PCB	Dielectric Thickness	Copper Thickness
Measure	mil	µm (oz/ft2)
Panasonic R-F775 Adhesiveless Flexible Laminates	1mil/2mil/3mil/4mil	1/3oz, 1/2oz, 1oz, 2oz
Panasonic R-F777	2mil/3mil/4mil/5mil	1/3oz, 1/2oz, 1oz, 2oz
Dupont AP 8545R/8535R/8525R all polyimide laminate	4.0 / 3.0/ 2.0	18 (0.5)
Dupont AP 9131R/9141R all polyimide laminate	3.0/ 4.0	35 (1.0)
Panasonic LCP R-F705S Dk 2.9 Df 0.002 @14GHz	1/2/3/4/5	1/2oz, 1/3oz, 1/4oz
ShengYi SF202 FCCL Double-sided Adhesiveless	0.5/0.8/1/2 mil	0.1/0.2/0.3/0.5/0.7/1.4/2.8 oz
Low Loss MPI FCCL SF230	1/2 mil	1/3 oz,1/2 oz

Flex PCB Prototype

We have completed over 800+ flexible PCB prototyping projects for customers around the world, across various industries. Among these orders, 2/4/6/8/10 layers are the structure we mainly fabricate. Below are some examples :

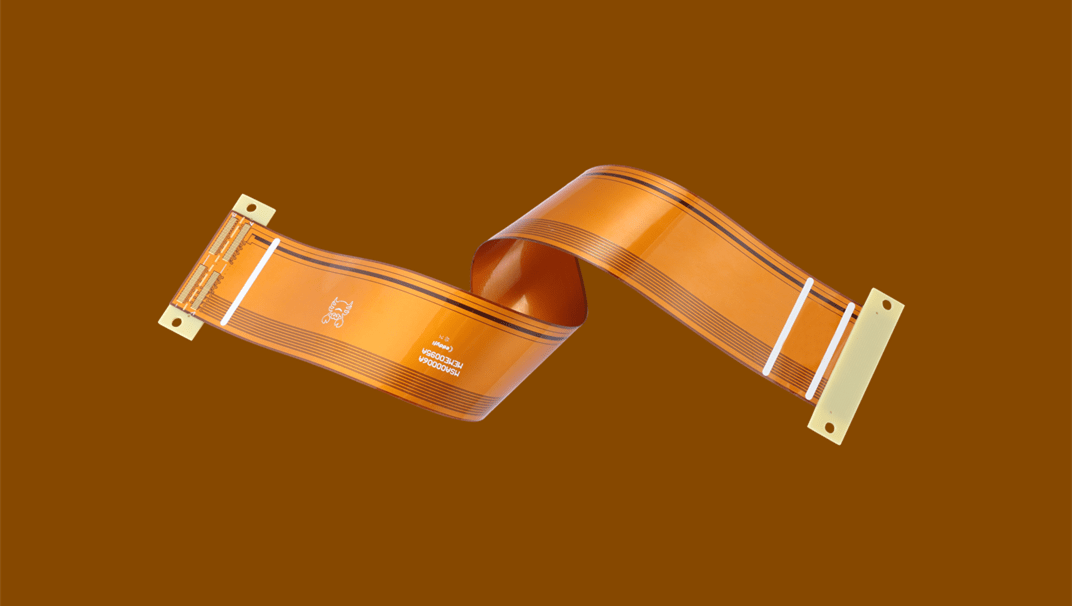

2 Layer Flex PCB Prototype

Double-sided FPC is the most common structure, widely used as interconnection technology to replace soldered flex cables.

Flex PCB at the right is the typical 2L FPC with connectors assembled at both ends to interconnect rigid PCB.

It comes with 130mm x 32mm size, 4mil/4mil min trace/width and FR-4 stiffeners to support connectors soldering.

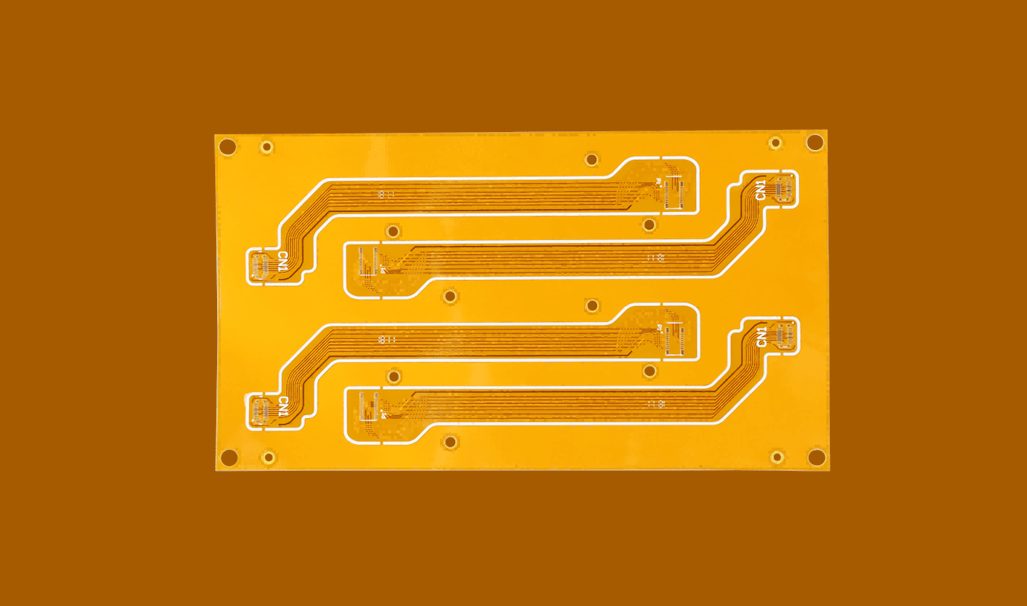

4 Layer Flex PCB Prototype

This 4L flexible PCB is manufactured for vehicle communication applications, featuring 100OHM differential pairs and EMI shielding.

The single pc size is 98mm x 12mm. Min trace/space: 4mil/4mil. ENIG treatment.

To prevent EMI disrupting the performance of an electrical circuit, we recommend to apply EMI shielding foil after coverlay.

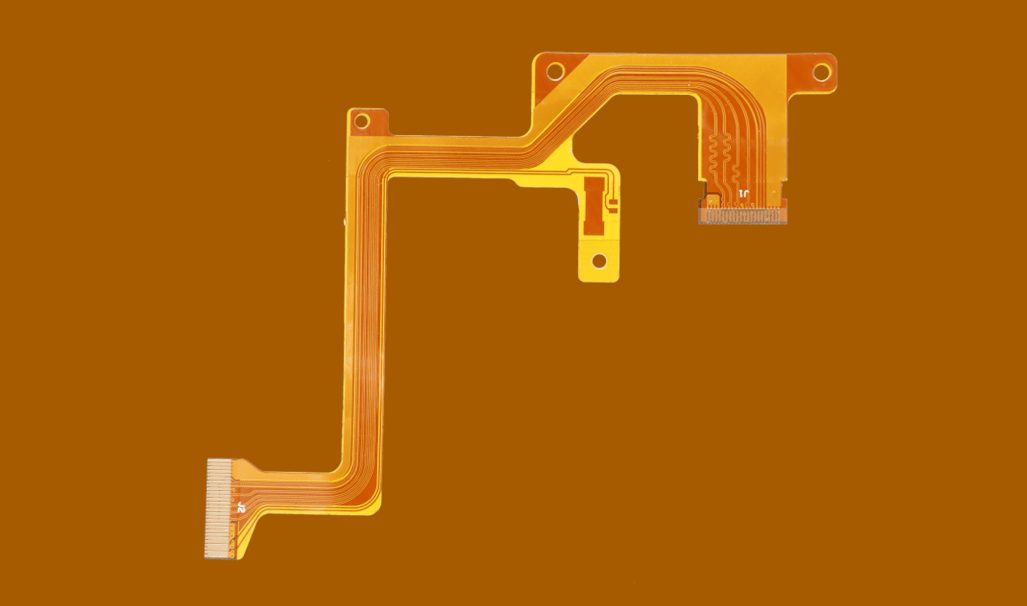

8 Layer Flex PCB Prototype

8 layer is a high layer count for the flexible printed circuit board. A higher layer means a higher possibility of occurring deformation, which will make vias drilling and lamination process harder to control.

That is why few PCB manufacturers are able to mass produce high-layer FPC with consistent quality.

XPCB ADVANTAGES

FPC Laminate Cutting Machine

Automatic Exposure Machine

Plasma Cleaning Machine

Increase the binding force of rigid-flex PCB

AOI Machine

2mil Above Circuit Detection Scanning

Brown Oxide Line

Pretreatment of inner layer pressing

LDI Machine

TOGETHER, Build Your Flex PCB One-time Success

XPCB Ltd is a decade-old flex PCB manufacturer & assembler in China. With more than 15 years of experience as a PCB supplier, we are known for our expertise in flex PCB manufacturing & assembly, including flex PCB prototypes, low volume, medium volume, and high volume flexible PCB. Meanwhile, we also provide a one-stop flex PCB assembly service for customers who need affordable and quick turnaround PCBA service.

All of our flex PCB products are IPC standard certified with Class II or Class III as customer needs. It’s our goal to provide top-notch flex PCBs to the department dedicated to electronics development. Whether you are a design company or end product manufacturer, we are more than happy to offer you our professional flex PCB solution.

To maximize the odds of “Right at First Design”, we can provide in-depth engineering support for each stage, from layout drawing, mechanical assemblies, and functions testing to prototype return result analysis and refinement trial. Using our decade of flex PCB manufacturing experience, you can avoid multiple manufacturability & compatibility issues before going to scale production.

Our typical lead time for flex PCB prototype is 2-12 working days. If adding components assembly, lead time would be extended to 14 working days. To check quote, we usually need following info:

1.Gerber file 2.BOM (if need assembly) 3. Qty 4. Manufacturing Instructions
